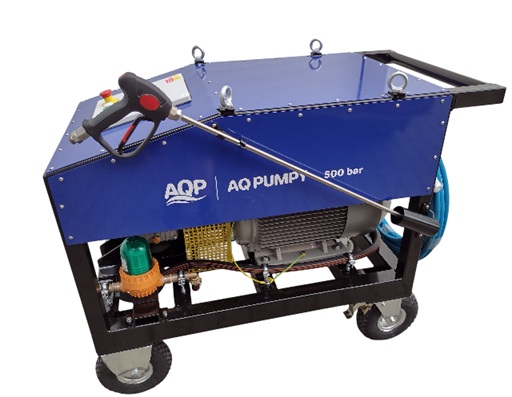

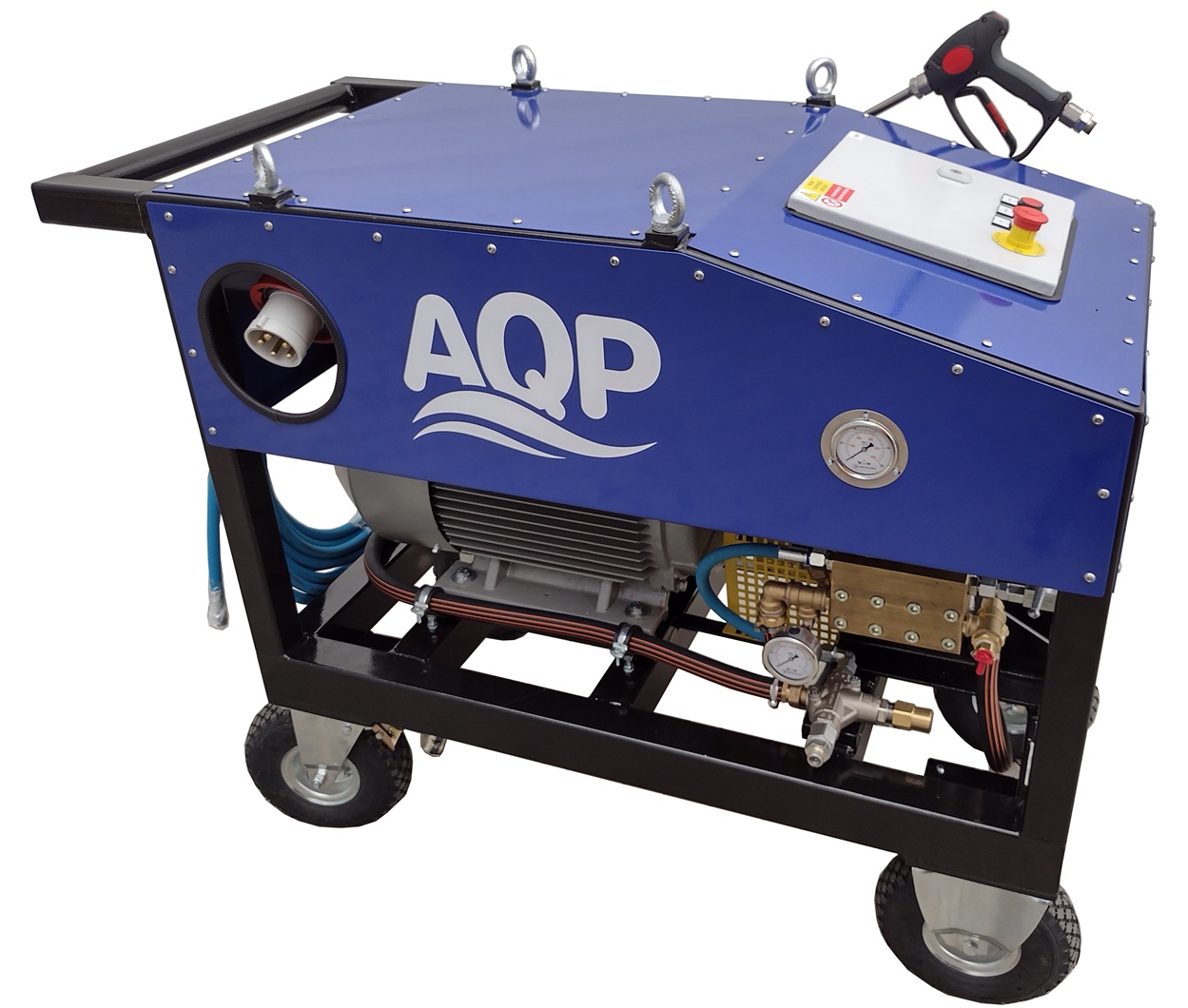

The high-pressure electric mobile cleaning unit AQHC 22-500/20 E is a cold-water industrial high-pressure device for cleaning various types of surfaces with a high-pressure water jet up to 500 bar at a flow rate of 20 l/min.
Such a powerful unit is a practical helper especially in power plant premises, chemical plants, and for demanding cleaning of technology in sugar factories, concrete plants, cement plants, etc.
technical designation
AQHC 22-500/20 E
Pressure
500 bar
Flow
20 l/min
Power
22kW
Dimensions
1320x660x1130mm
Weight
380
Price (excl. VAT)
on request
Characteristics
mobile high-pressure cleaner with a reliable 22 kW electric motor
simple operation and operator comfort
durable pump with ceramic plungers
sandblasting set available for removal of the most adherent deposits (rust, paints, concrete, etc.)
possibility to connect to a hot-water module for removal of asphalt, paints, etc.
Technical parameters
Basic description of the equipment:
1. High-pressure unit
the high-pressure unit is mounted on a robust semi-covered frame, which is equipped with swivel wheels with a brake, enabling movement on a paved surface.
Pump suction equipped with a filter of the sucked water with GEKA end fitting
Pressure sensor as protection of the pump against dry running
Thermal valve as protection against overheating of water within the By-Pass
Pump discharge equipped with a pressure gauge
The unit pressure is changed by changing the nozzle diameter
2. Pump
horizontal three-plunger pump with crank mechanism for max. pressure 500 bar at max. flow rate 20 l/min. The pump is equipped with a thermal valve for the possibility of discharging hot water in case of longer interruption of spraying while the unit is switched on.
3. Motor
electric motor 22 kW, 1485 rpm
4. Switchboard
plastic switchboard approx. 200 × 250 × 140 mm, mounted on a common frame
Star/delta connection
Start/Stop button
Total Stop button
Power connection 5-pin plug with connector on Hydroblaster 500
Application
The equipment is an ideal helper especially in:
Cement plants or concrete plants (cleaning mixers, hoppers, molds, conveyors)
Scaffolding and formwork rental companies and construction machinery
Industrial facilities for cleaning technology, conveyors, boxes, etc.
Operations with high requirements for regular maintenance of technology (food industry, chemical plants, etc.)
