Special closing fittings for abrasive mixtures

Design, development and production of non-standard valves designed for high abrasive mixtures (ash, mash, extra energy products, etc.)

DESCRIPTION

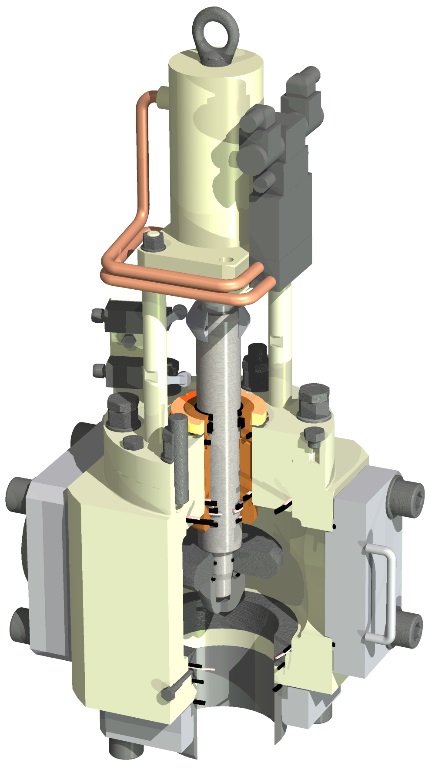

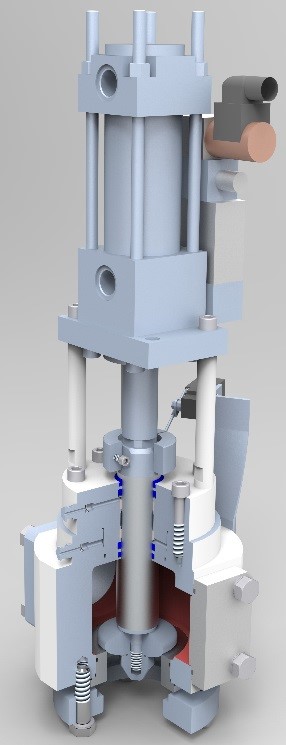

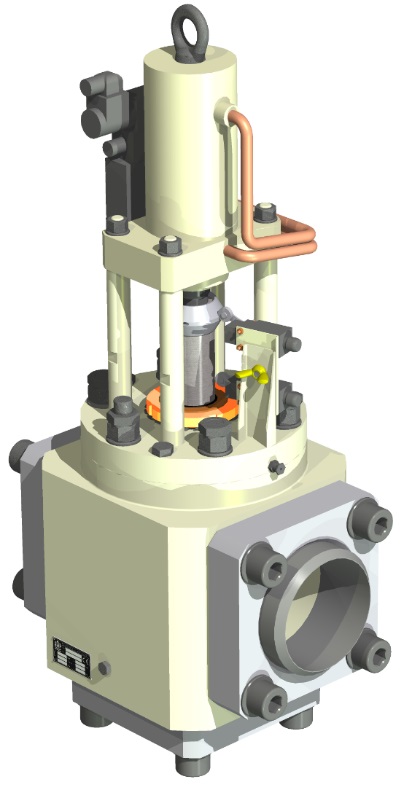

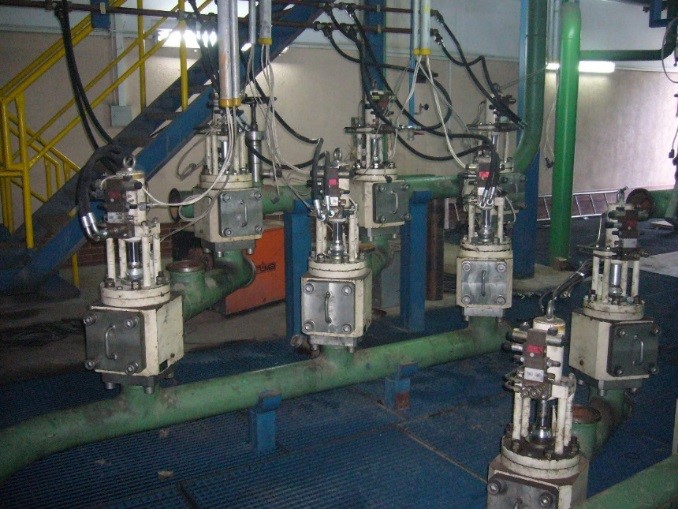

Design, development and production of special high-pressure valves for abrasive mixtures (hydro-mixtures - a mixture of solid particles with a small fraction in water) for the design and supply company. The valves are controlled by oil linear motors and completed by position sensing. The high pressure valves have been designed for specific hydraulic piping systems for power fly ash, crushed ores and other similar hydro mixtures over several kilometers. The high pressure valves are always located at the inlet and outlet of the chamber dispenser into which the hydrosample is supplied from the reservoirs and the pressurized water from the high pressure aggregates. These high pressure valves are suitable for use in pumping hydro-mixtures such as bauxite, uranium ore or various sludges, ash or other dense, highly abrasive and viscous suspensions.



Parameters

Departure from specific customer requirements; DNs / pressure classes (PN) realized so far:

DN80 / PN63, DN100 / PN63, DN125 / PN160, DN150 / PN100, DN175 / PN100, DN200 / PN100, DN300 / PN100

Are you interested in similar realization?

Send us your contact and we will get in touch with you as soon as possible.
