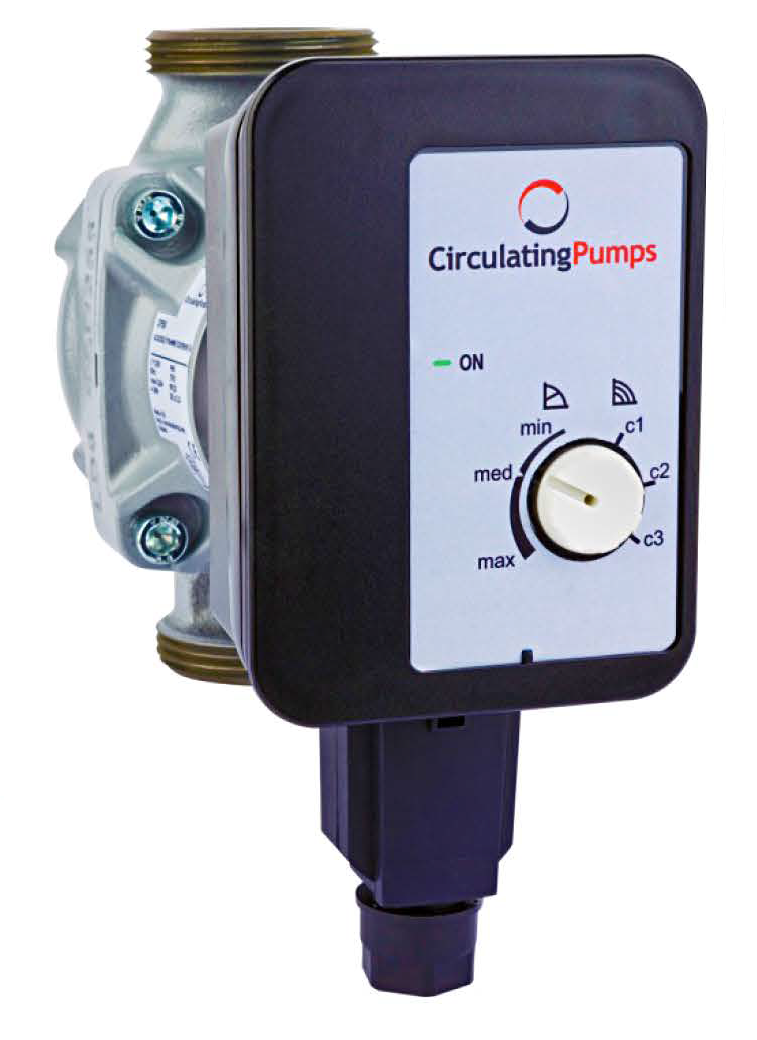

CP 50 / CP 60 (Circulating Pumps / MYSON)

CP and CP 60 CP are powerful high performance . This powerful device is not only for the environment, but especially for the owner of the building, who will often feel even a tenfold savings almost immediately after replacing his older pump.

pump / device type   CP 50 / CP 60
Head   up to 6 m
Pressure class   PN 6/10
Flow   3.5 m3 / hr
Temperature range   -10 to +110 ° C
Price (excl. VAT)
on request

Characteristics

  • Replaceable with third-party pumps
  • Easy Connections via a threaded connection
  • Easy to use three-speed switch
  • lightweight, compact and maintenance-free
  • LED on / off pointers
  • Permanent magnetic EC motor with integrated electronic differential pressure control
  • EEI <23, energy class A, consumption 4 W = energy savings of up to 80%

Technical parameters

Pump performance curve CP 50 and CP 60

Traffic height

6 m

Flow

3.5 m3 / h

Pressure class

PN 10/6

Temperature range

-10 to +110 ° C

Ambient temperature

0 to + 40 ° C

Mounting lengths

130/180 mm
