OMEGA

OMEGA

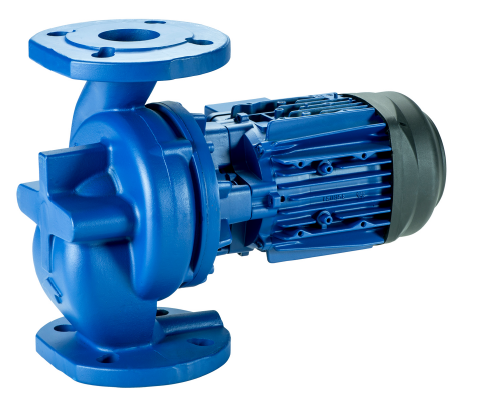

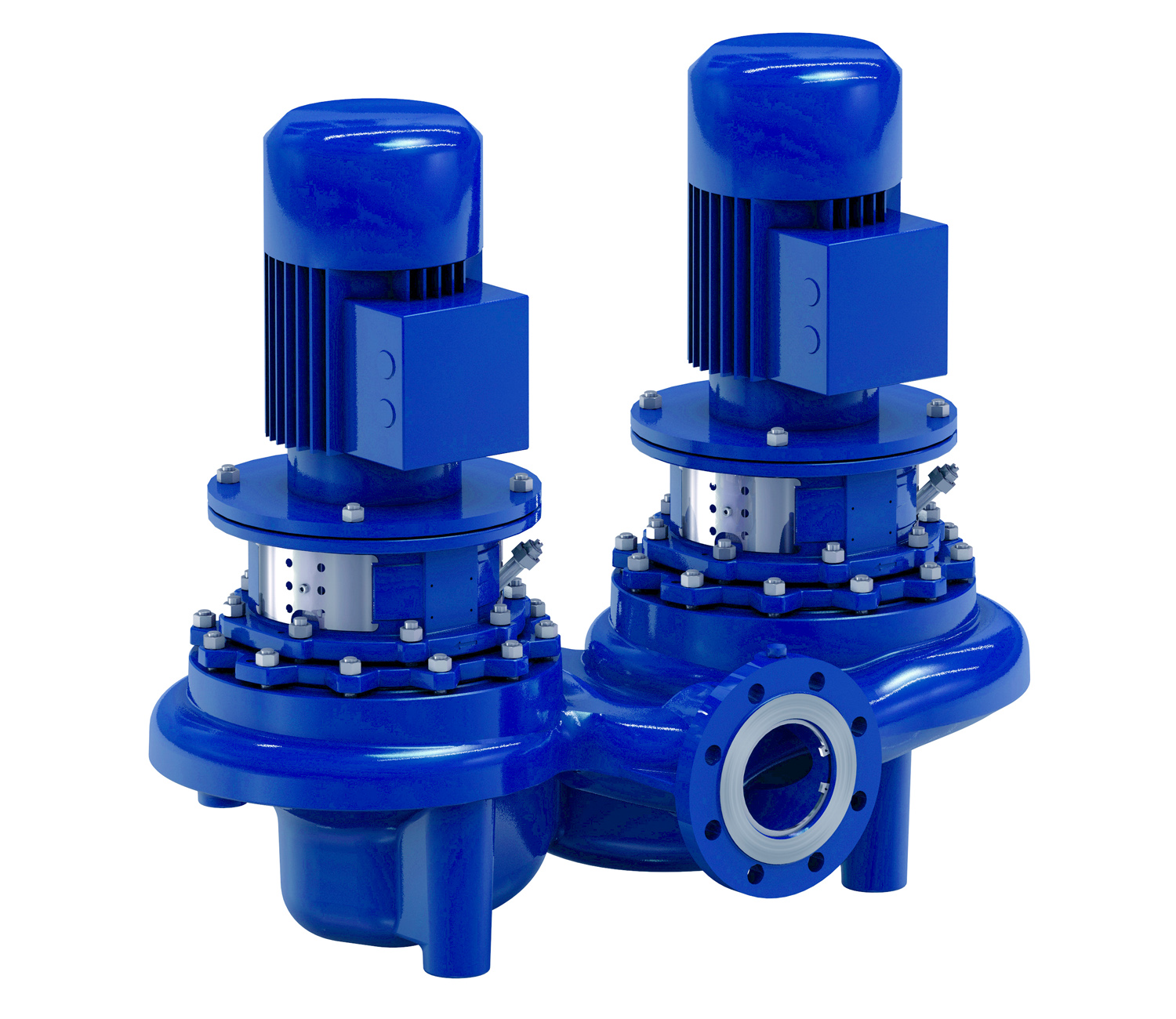

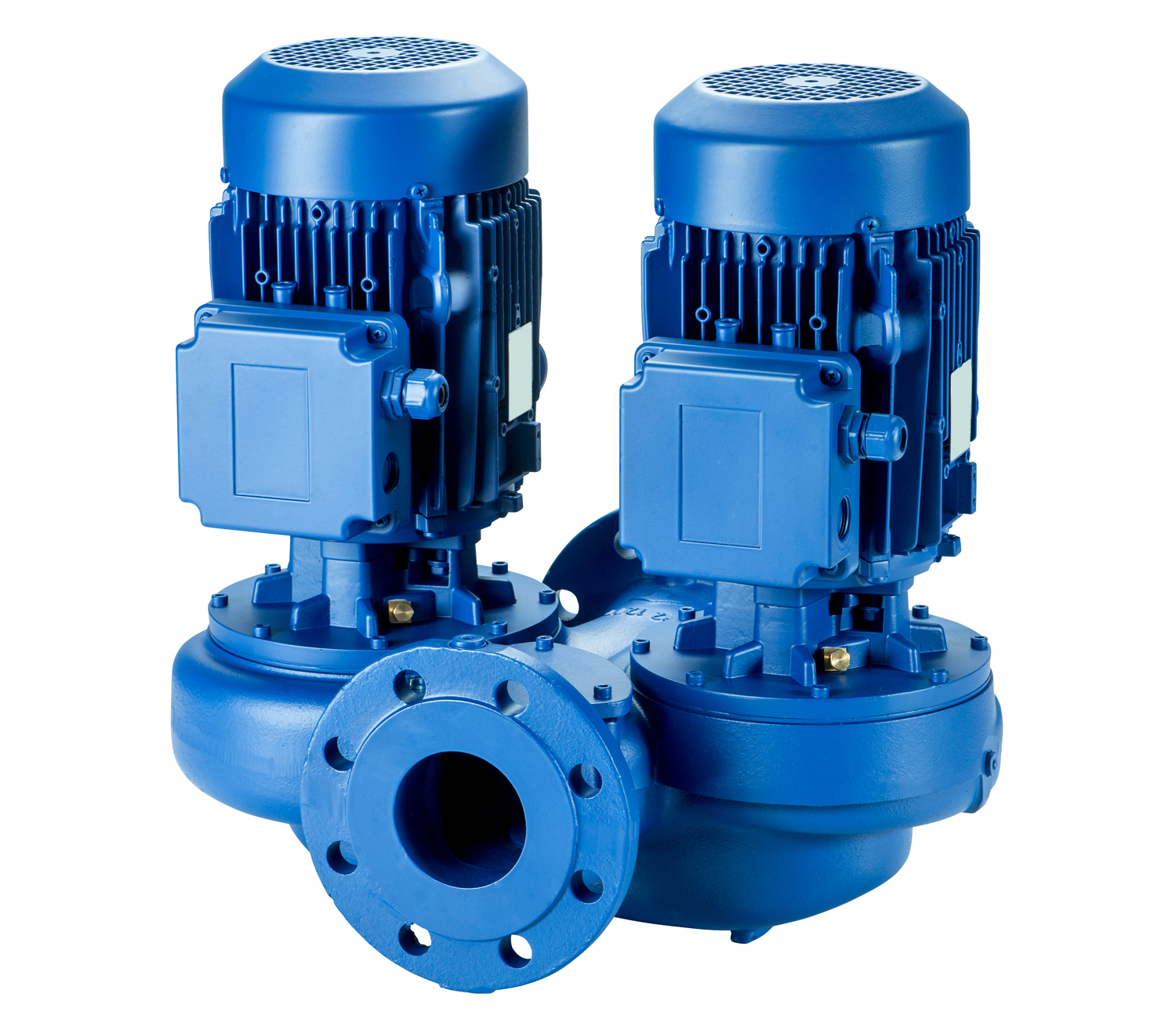

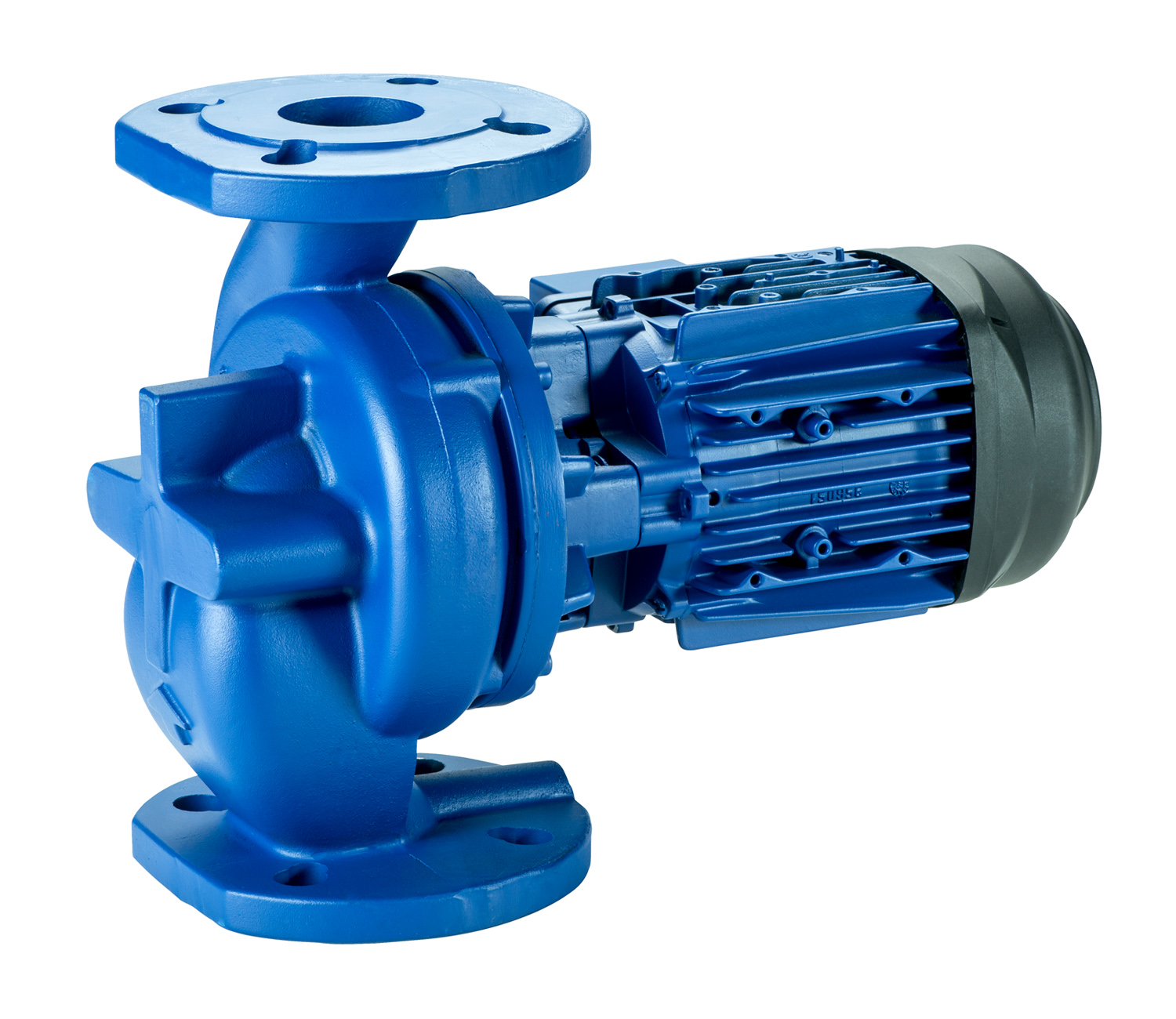

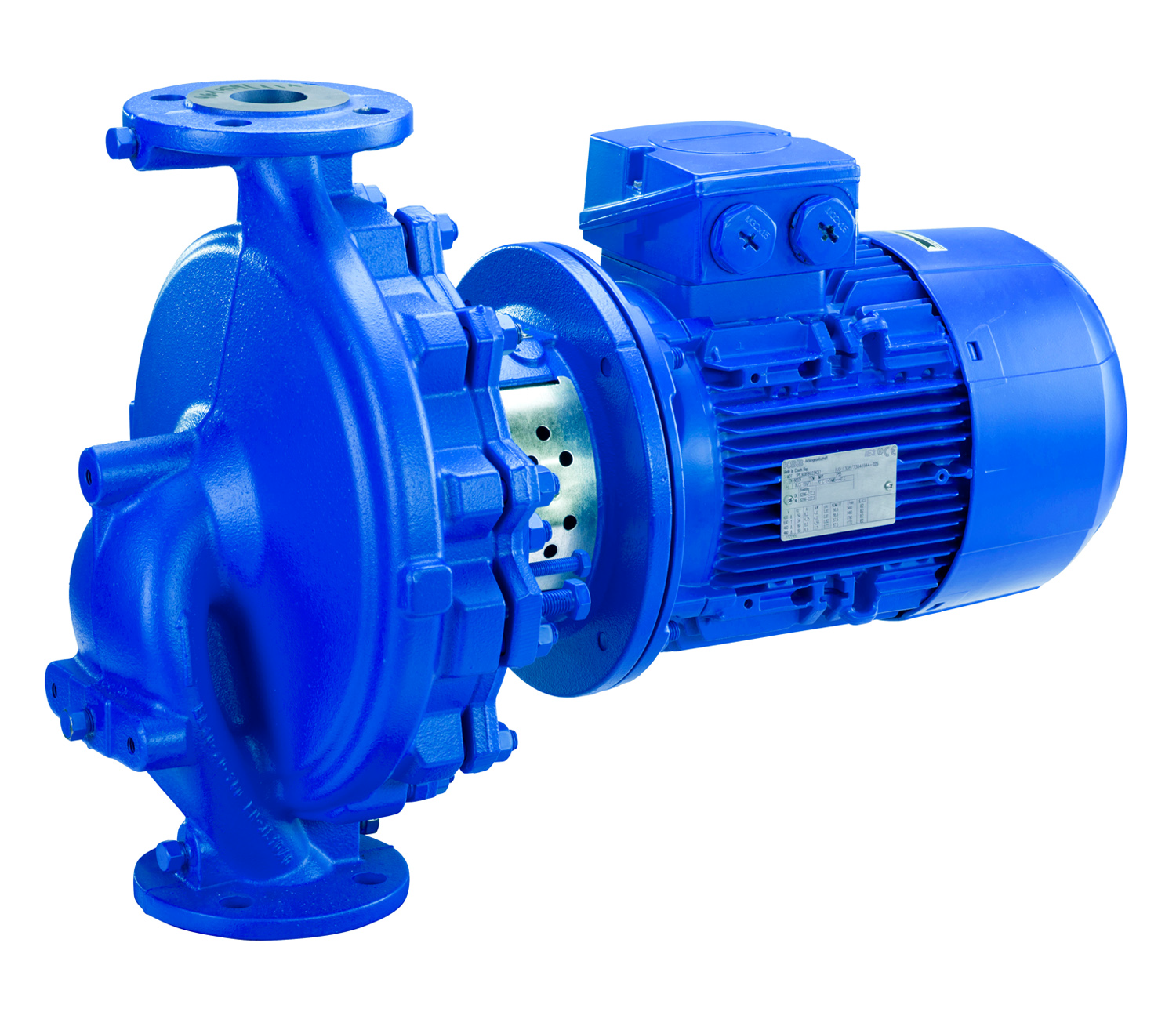

Omega centrifugal pumps are among the most powerful devices of their class, valued for their reliability and durability . Thanks to the perfect hydraulics and engine design, they have low power consumption , they are silent with minimal vibration . The PULL BACK construction design simplifies the pumping service significantly when the pumps can be repaired without dismantling the pipeline.

The pump is designed to extreme temperatures (-30 to + 140 ° C ) for pumping very cold and hot water and other process liquids. Widespread use is especially found in cooling, circulation and heating systems, for district heating of buildings, extinguishing systems, WWTPs, WWTPs, pumping stations, etc.

pump / device type   OMEGA S, DS, SL, DSL
Head   up to 96 m
Pressure class   PN16
Flow   up to 1095 m3 / hour
Power   0.25 to 55 kW
Temperature range   -30 to + 140 ° C
Material   cast iron
Price (excl. VAT)
on request

Characteristics

  • Pump series Omega: S, DS, SL, DSL
  • Pump directly connected to the engine Stainless steel seal (AISI 316)
  • k Simple, Reliable, Long-Term Seamless Traffic
  • Variable Location: Horizontal or Vertical Position
  • Standard Material: cast iron / mechanical seals from carbon / ceramics (EPDM)
  • Special Material Version Available on Demand
  • suitable for pumping pure, nonabrasive, non-explosive liquid without mechanical particles and fibers

Technical parameters

Typical applications:

  • Water supply for heating, boilers, heating, air conditioning and extinguishing systems

  • pressure booster stations

  • water treatment plants (WWW), sewage treatment plants (WWTPs), water supply and sanitation (VAC)

  • water transport, cleaning and washing applications

Documents to download

Technical data Omega SL (2.21 MB)
Technical data _Omega DSL (1.91 MB)
