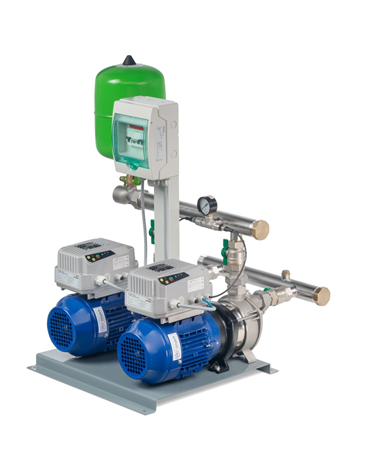

Fully automated domestic waterworks installed on a base plate with two horizontal full-length VATM (C), frequency inverters and one common pressure vessel to provide drinking water, running and cooling water or other media, which are not chemically and mechanically aggressive.
The
Drive ensures low energy consumption, constant pressure monitoring, motor overload protection, and dry run protection. The whole system is certificated for drinking water according to demanding English, French and German standards.
pump / device type
ECO LINE 2 FM
Head
up to 53 m
Suction ability
up to 8 m
Flow
up to 232 l / min
Power
0.55 to 1.5 kW
Material
stainless steel
Price (excl. VAT)
on request
Characteristics
Certified for drinking water supply ACS / WRAS / DE
Two-pump system and frequency inverters
Energy efficient operation provides an FM that maintains constant pressure and pump speed control
Plug & Play design for simple commissioning
Compact and space-saving
Resistance against corrosion by stainless steel and special painting
Integrated drought protection for reliable operation
Single- or three-phase version
Technical parameters
PARAMETER TABLE
Pump
Max. pressure
Flow [m³ / h]
Flow rate [l / min]
Tensions
Frequency
Performance
2x VATM 2/4
43 m
6
100
1 ~ 230/3 ~ 400 + N
50/60 Hz
0.55 kW
65 kg
2x VATM 4/4
50 m
10
166
50/60 Hz
1.1 kW
73 kg
2x VATM 6/4
53 m
14
232
1 ~ 230/3 ~ 400 + N
50/60 Hz
1.5 kW
Pumps are not self-priming, and therefore perfect pump and suction piping must be ensured. Suction height 8 to 5 m (see performance curve).
