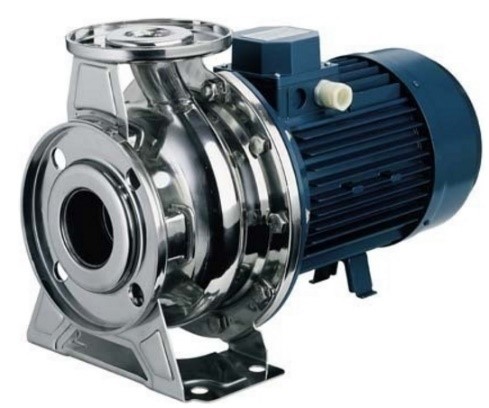

EBARA 3 / 3L

The EBARA 3 Series and 3L are one-stage stainless pumps in AISI 304 (3M, 3S, 3P) or AISI 316 (3LM, 3LS, . Pumps are certified for (WRAS, TIFQ) drinking water and (ATEX) explosive .

Pumps are designed for demanding operation and Continuous pumping of drinking, industrial or process water, or other industrial fluids suitable for a particular material design. Axial input design conforms to EN 733 (formerly DIN 24255 ), high headroom to 100m , flow to 240 m3 / hr (- 20 to + 120 ° C) predetermines the pump for a wide range of applications. Pumps are used for water supply for rural or farm farms, industrial applications, water treatment plants, swimming pools, boiler rooms, fire protection systems, cooling, irrigation and booster systems, etc.

pump / device type		EBARA 3M - 3S - 3P - 3LM - 33LS - 3LP
Head		up to 100 m
Flow		240 m3 / hour
Power		0.25 - 55 kW
Temperature range		-20 to + 120 ° C
Material		stainless steel

Price (excl. VAT)

from 14,400, -Kč

Cena (včetně DPH)

from 17.424, -Kč

Characteristics

centrifugal spiral pump with axial inlet standardized to EN 733 (formerly DIN 24255)

AISI 304 stainless steel

AISI 316

Certificates: ATEX (explosive environment), WRAS, TIFQ
easy pump service, does not need to remove suction and discharge piping
Wide range of mechanical seals for pumping different liquids
Place your pump vertically

Technical parameters

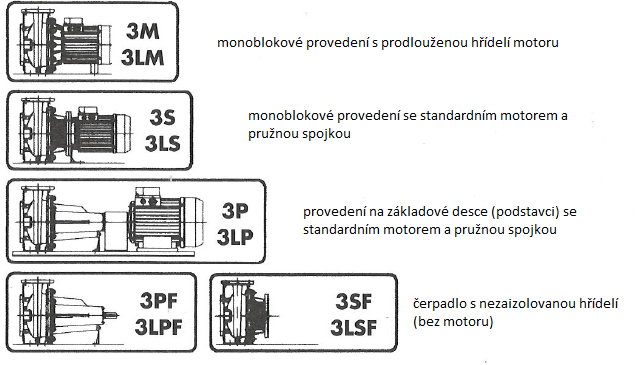

The EBARA 3 / EBARA 3L pumps are manufactured in 4 basic versions:

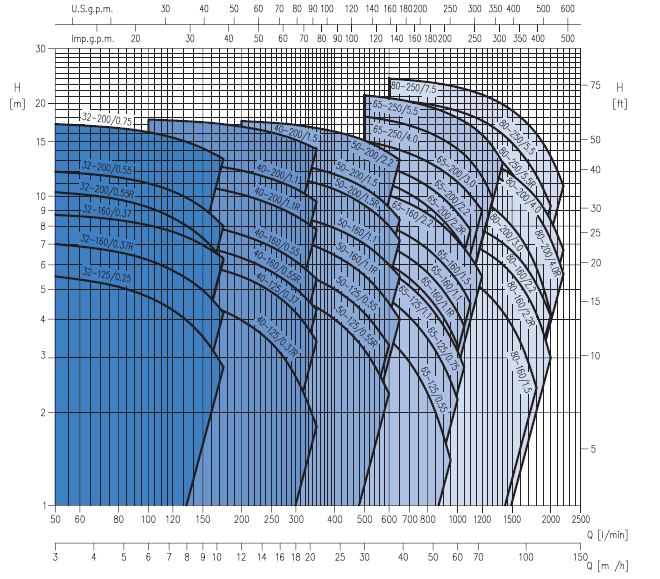

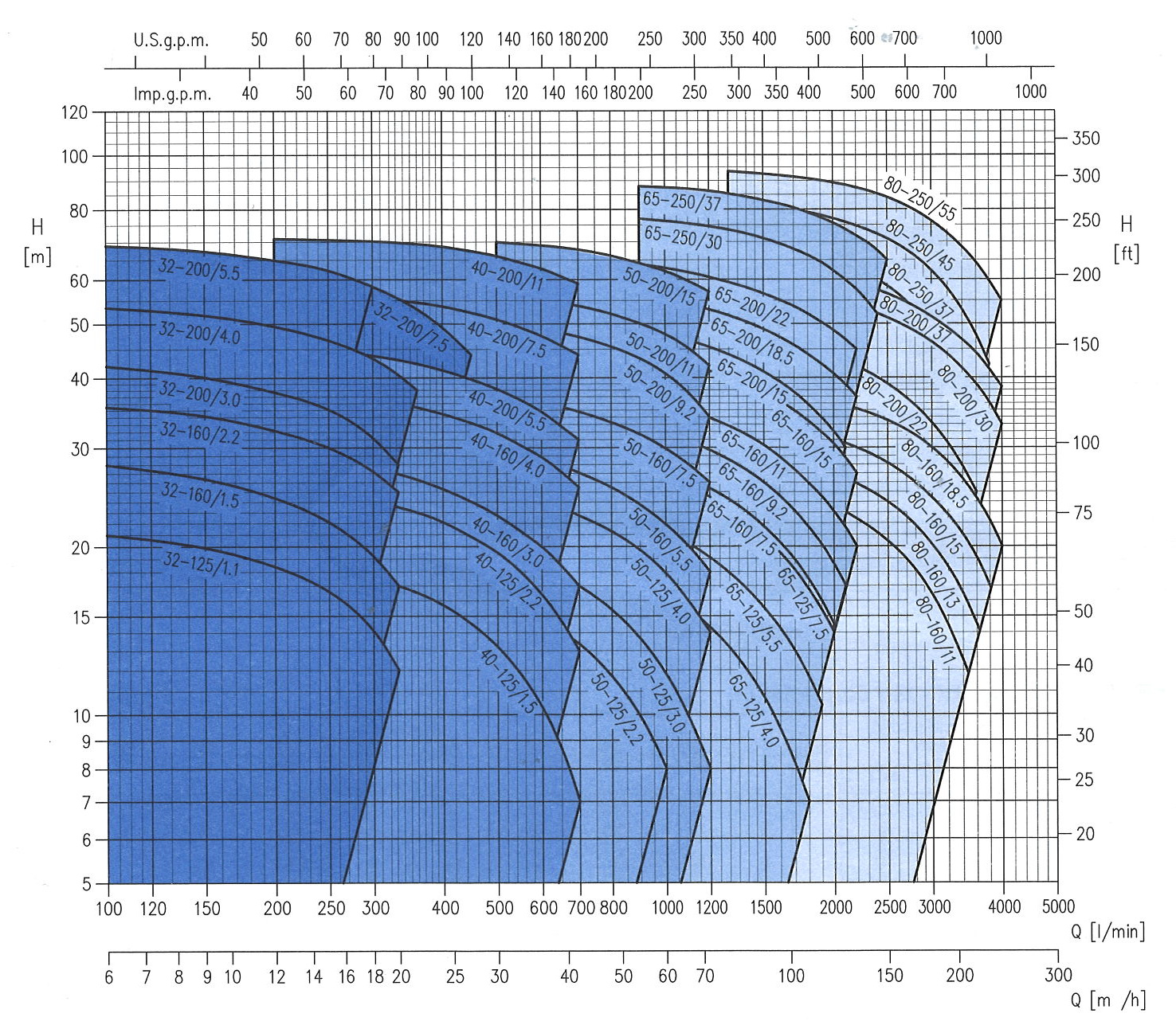

Performance curve for 2-pole engine

Documents to download

Technical data for Ebara... (0.51 MB)

Ebara 3 / 3L (EN) (3.08 MB)
