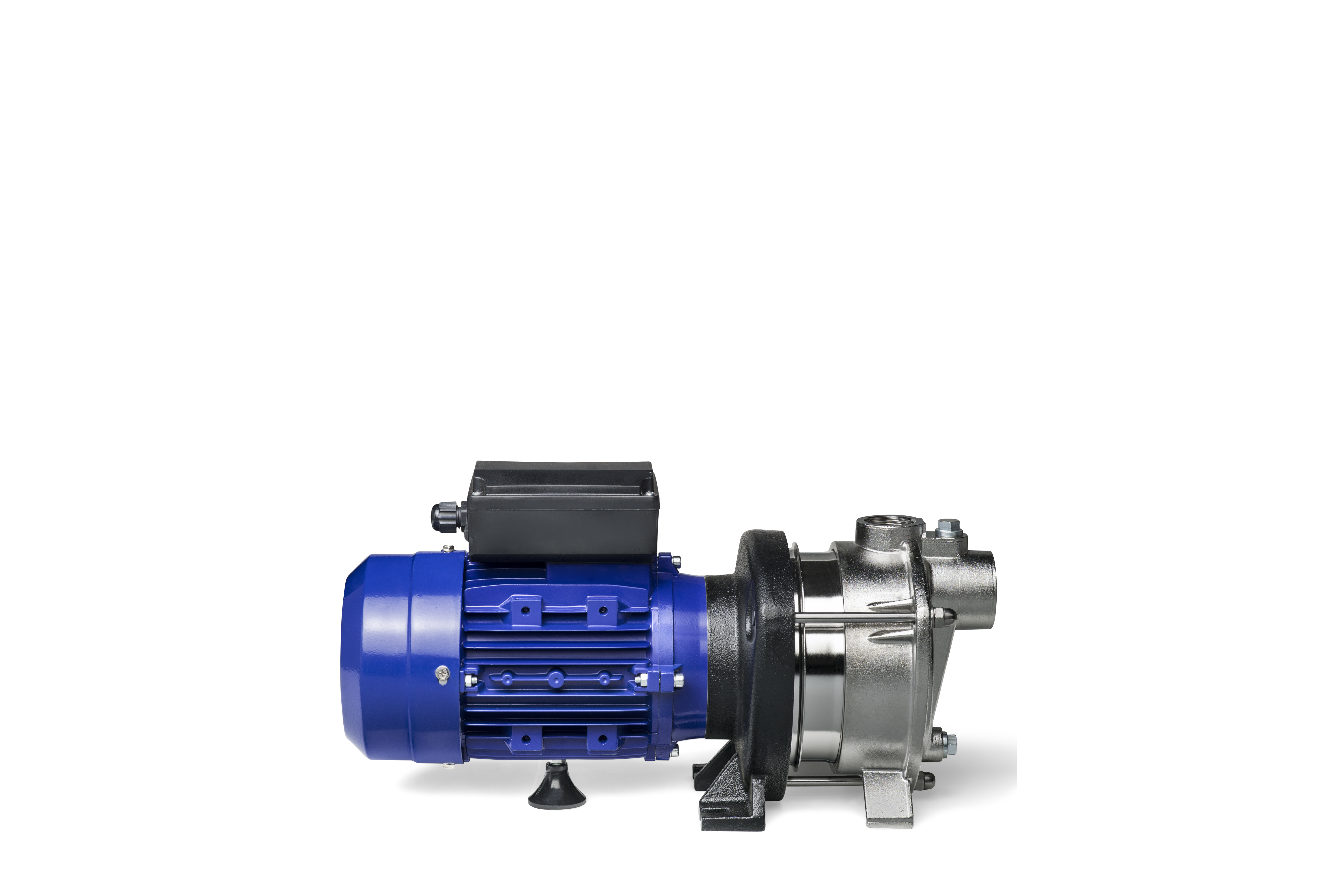

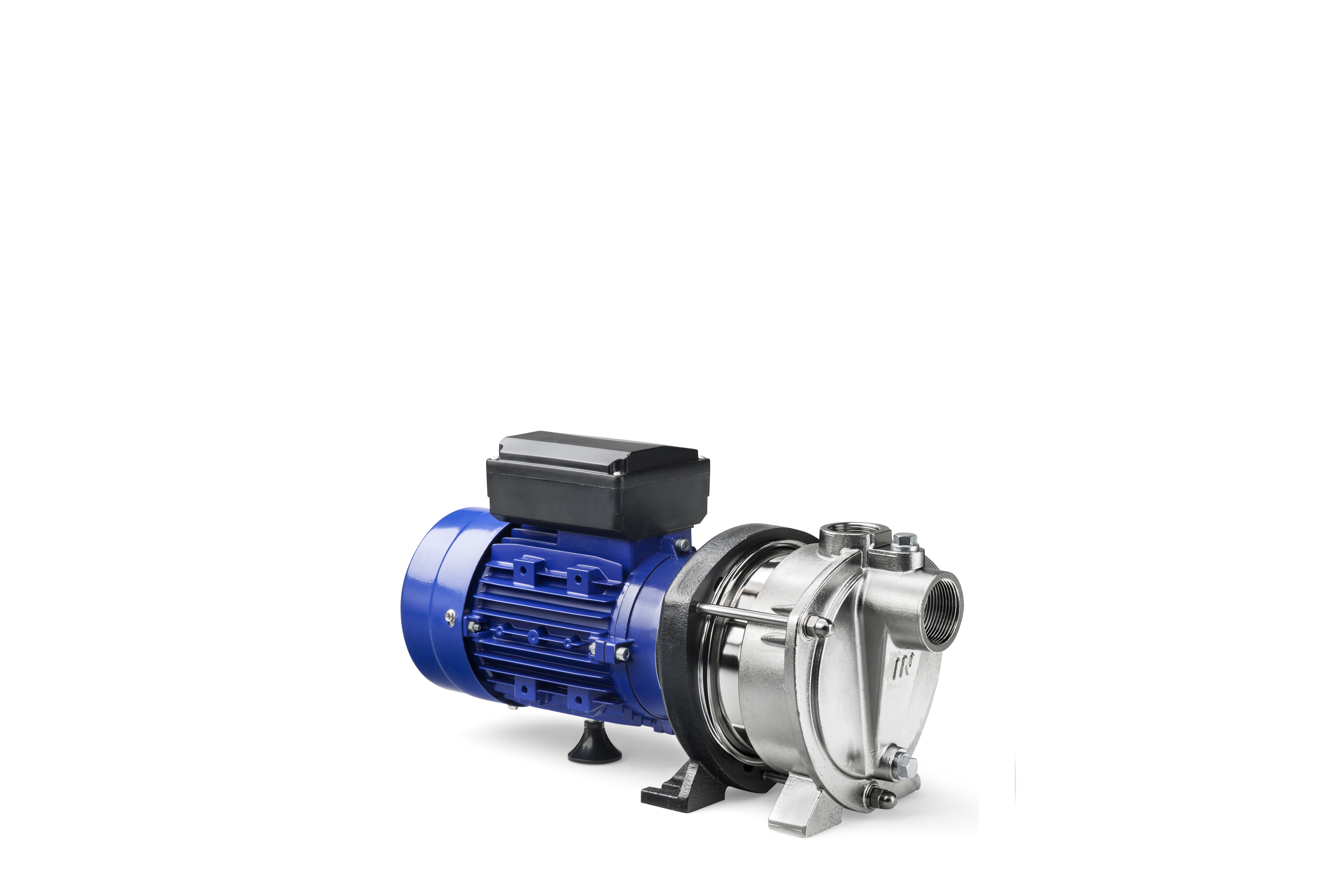

The multi-stage horizontal pump, VATM (C) 2, is designed to pump water and water solutions or slightly aggressive liquids. The pump is particularly suitable for industrial applications or domestic waterworks, stations, fitness stations, etc.
The pump is easy to install, run, and maintain . All parts of the hydraulic parts are made of stainless steel. The pump hydraulics of the VATM (C) pump is based on the highly efficient hydraulics of vertical multistage DPV pumps. The pump is produced in two, four or six impellers and reaches up to 3.2 m3 / hour and the headroom up to 45 m .
| pump / device type | VAT 2/2, 4, 6 | |
| Head | up to 35 m | |
| Pressure class | PN 10 bar | |
| Suction ability | 7.4 m (NPSH = 1.6 m) | |
| Flow | up to 3.2 m3 / h | |
| Power | 0.37 - 0.55 kW | |
| Temperature range | -20 to +60 ° C | |
| Material | stainless steel (AISI 304/316) |
|
MODEL |
VATM 2/2 |
VATM 2/4 |
DPMH 2/6 |
|
Performance |
0.37 kW |
0.37 kW |
0.55 kW |
|
Optimal Performance |
0.14 kW |
0.28 kW |
0.43 kW |
|
Pressure [P] |
|||
|
Max. Pressure [P = m] |
15 |
30 |
45 |
|
Max. Eight. Pressure [Popt = m] |
12.3 |
24.5 |
36,7 |
|
NPSH [= m] |
1.6 |
||
|
Suction capacity R [9 - NPSH = m] |
7.4 |
||
|
Flow [Q] |
|||
|
Flow rate [Q = m3 / h] |
3.2 |
||
|
Optimal Flow [Qopt = m3 / h] |
2.05 |
||
|
Temperature range |
-20 to + 60 ° C |
||
|
Max. |
48% |
||
