DPHM (C) 4

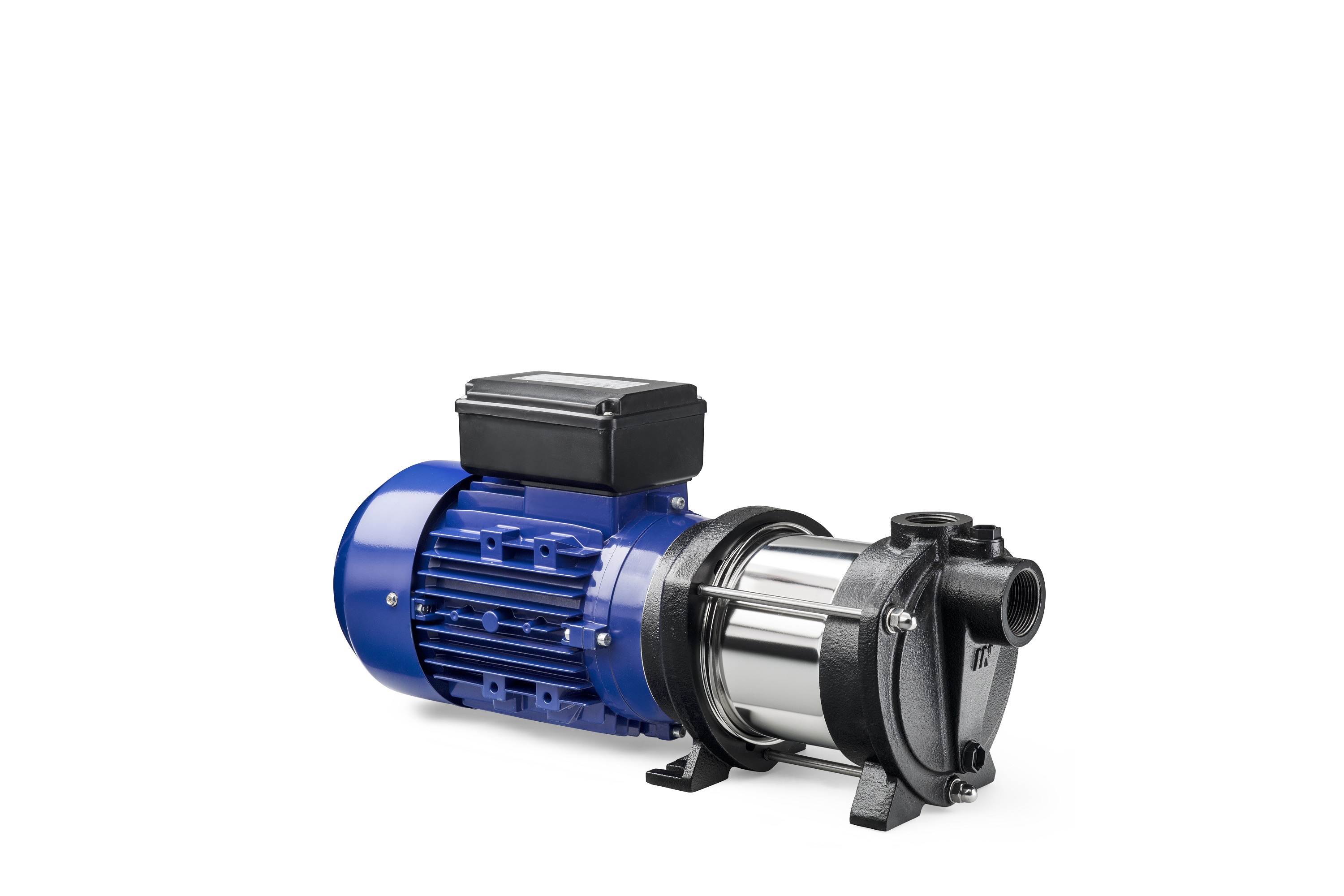

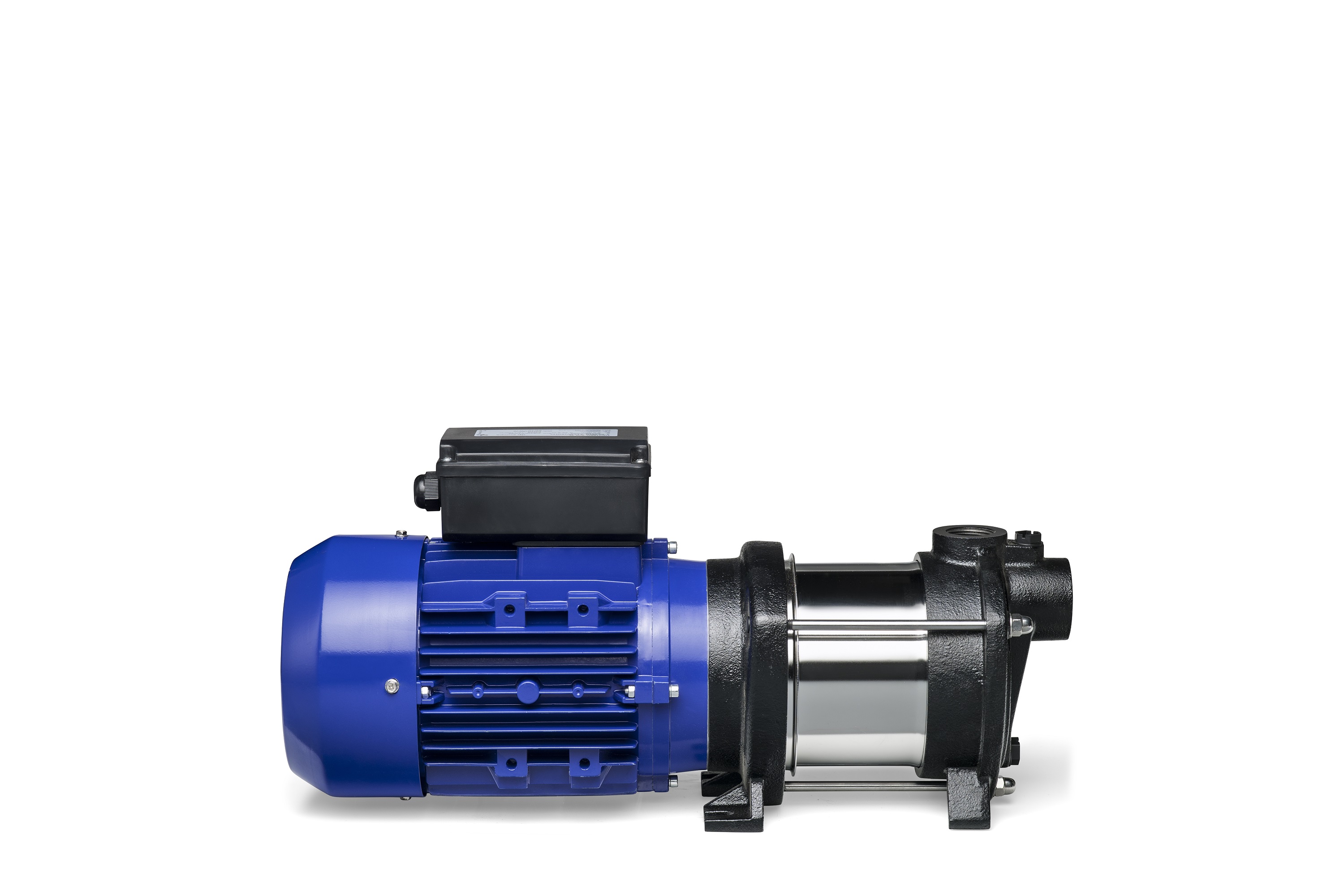

The multistage horizontal pump, VATM (C) 4, is designed to pump water and water solutions or chemically aggressive substances . The pump is particularly suitable for industrial applications or domestic waterworks, for irrigation as a pump for automatic pressure stations, booster stations, etc.

The pump is easy to install, run, and maintain . All parts of the hydraulic parts are made of stainless steel. The pump hydraulics of the VATM (C) pump is based on the highly efficient hydraulics of vertical multistage DPV pumps. The pump is produced on two, four or six impellers and has a flow rate of up to 6.5 m3 / hour and a headroom of up to 52 m .

pump / device type		VATM (C) 4 / 2,4,6
Head		up to 52 m
Pressure class		PN 10 bar
Suction ability		8 m (NPSH = 1 m)
Flow		6.5 m3 / hour
Power		0.37 - 1.1 kW
Temperature range		-20 to +60 ° C
Material		stainless / cast iron

Price (excl. VAT)

from 5.768, -CZK

Cena (včetně DPH)

from 6.980, -CZK

Characteristics

two-stage, four-stage or six-stage horizontal pump
Simple installation, operation, and maintenance
High quality hydraulic section made of stainless steel
low power consumption and long service life
Certified for drinking water ACS (France), WRAS (Great Britain)

Technical parameters

Parameter table

MODEL	VATM 4/2	VAT 4/4	DPMH 4/6
Performance	0.37 kW	0.55 kW	1.1 kW
Optimal Performance	0.29 kW	0.58 kW	0.86 kW
Pressure [P]
Max. Pressure [P = m]	17.5	35	52
Max. Eight. Pressure [Popt = m]	13.5	26,9	40.4
NPSH [= m]	1
Suction capacity R [9 - NPSH = m]	8
Flow [Q]
Flow rate [Q = m3 / h]	6.5
Optimal Flow [Qopt = m3 / h]	4.32
Temperature range	-20 to + 60 ° C
Max.	55%

* Data are listed for 50 Hz . For 60 Hz or other contact our dealers .

Documents to download

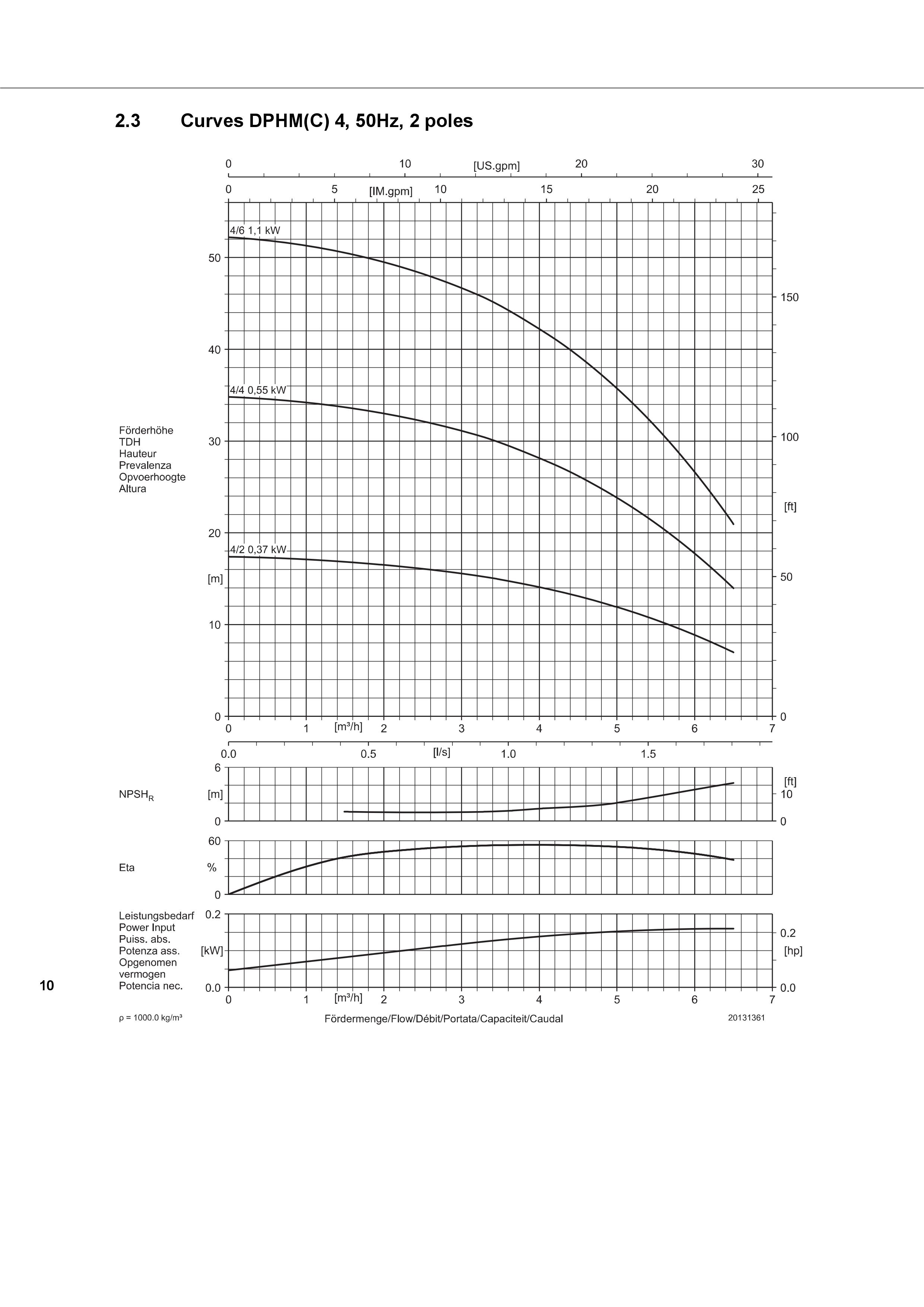

Pump performance curve (0.05 MB)

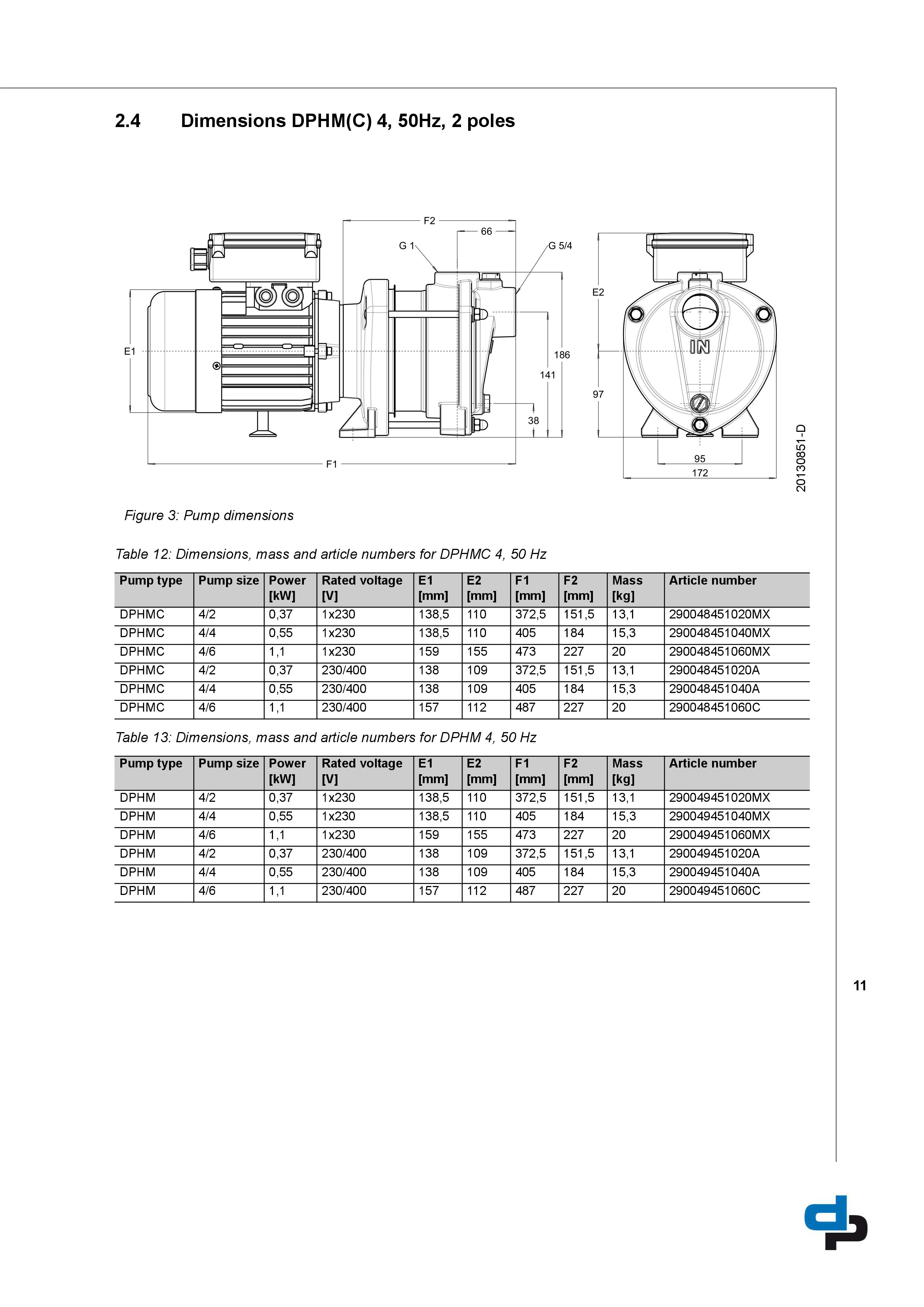

Pump dimensions (0.1 MB)

Technical data of DPHM (2.05 MB)

Brochure_DPHM (EN) (1.05 MB)
