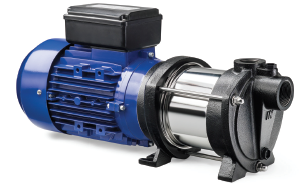

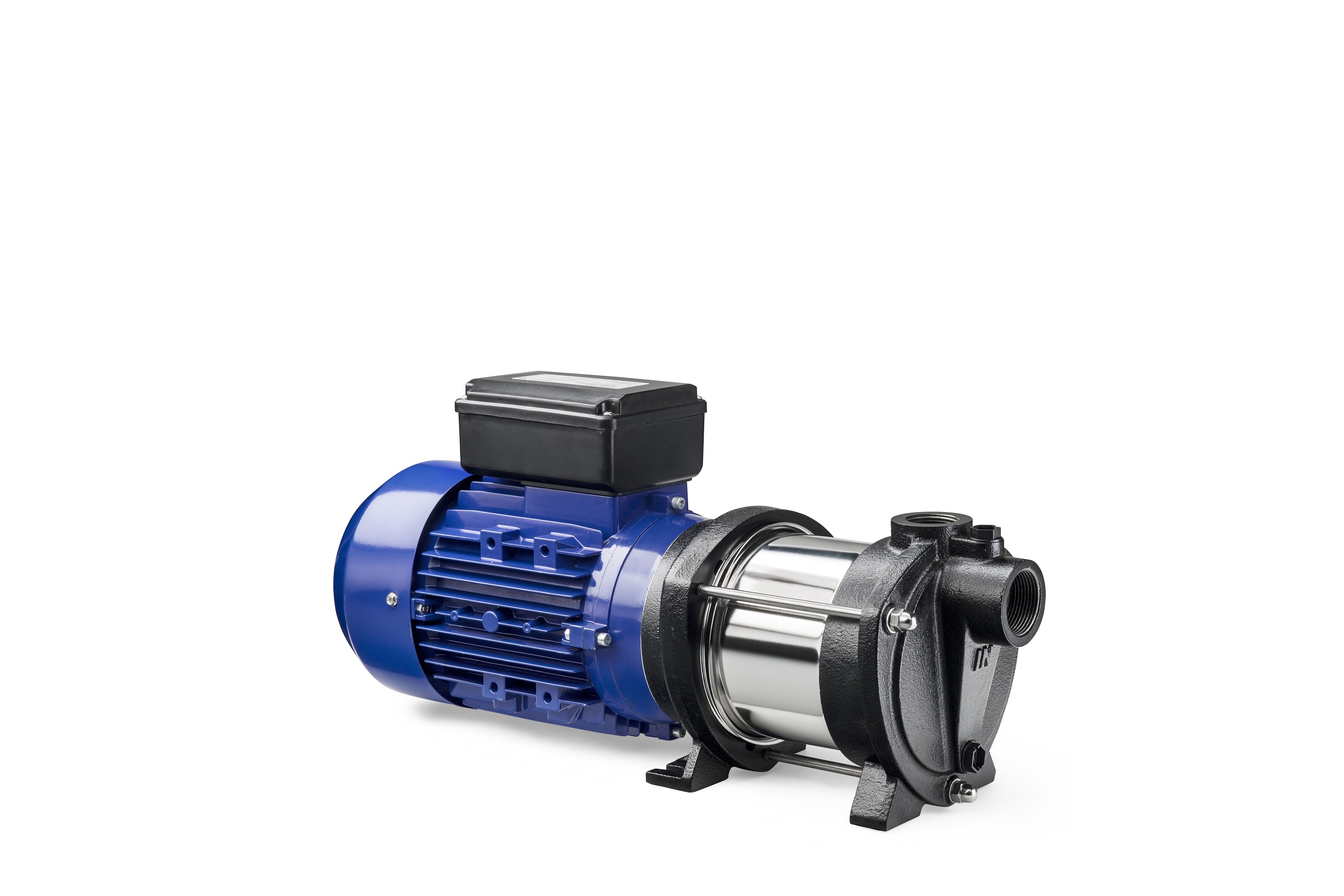

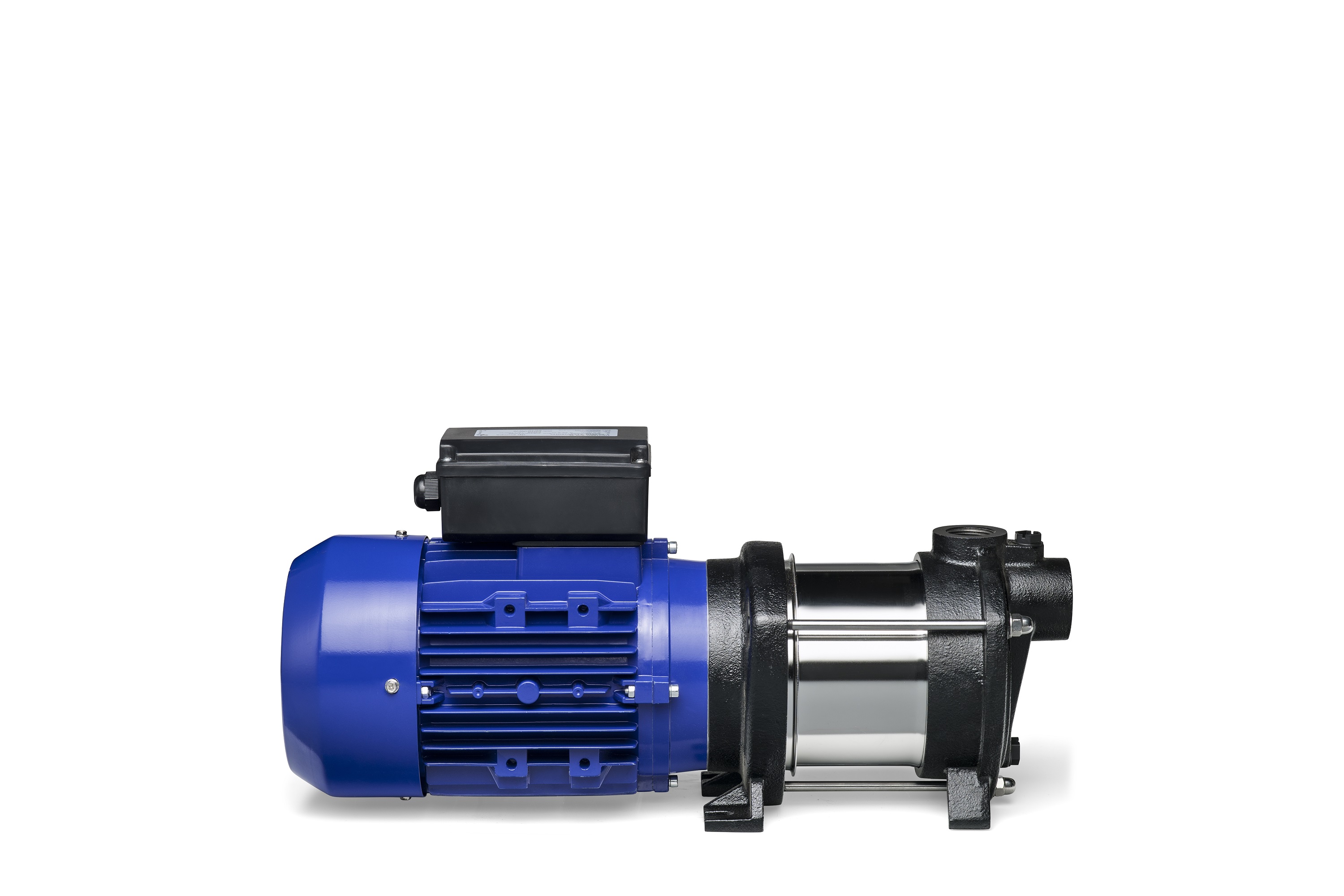

DPHM (C) 6

The robust horizontal centrifugal pump, DPHM 6, is designed for drinking water , process liquids and possibly slightly aggressive media in various applications such as domestic waterworks, fitness stations, ATS, lighter industrial applications.

DP PUMPS Centrifugal Pumps are certified for drinking water according to WRas, ACS, ATEX, CE certificates. All parts of the hydraulic parts are made of stainless steel grade AISI 304 and 316 . VATM pumps are based on highly efficient hydraulic pumps of vertical multistage pumps, reaching overhangs of up to 55 m and flow rates of 9 m3 / hour .

pump / device type		VATM 6/2, 4, 6
Head		up to 55 m
Pressure class		PN 10 bar
Suction ability		8 m (NPSH = 1 m)
Flow		9 m3 / hr
Power		0.37 - 1.5 kW
Material		stainless / cast iron

Price (excl. VAT)

from 5.978, -Kč

Cena (včetně DPH)

from 7.234, -Kč

Characteristics

centrifugal two-stage, four-stage and six-stage pumps
Easy assembly, operation and maintenance
High quality hydraulic part made of stainless steel AISI 304/316
long service intervals
Tested for Drinking Water: WRas (UK) / ACS

Technical parameters

Parameter table

MODEL	DPHM 6/2	DPHM 6/4	DPMH 6/6
Performance	0.37 kW	1.1 kW	1.5 kW
Optimal Performance	0.38 kW	0.76 kW	1.14 kW
Pressure [P]
Max. Pressure [P = m]	18.5	37	55
Max. Eight. Pressure [Popt = m]	14.2	28.5	42,7
NPSH [= m]	1
Suction capacity with reserve [9 - NPSH = m]	8
Flow [Q]
Flow rate [Q = m3 / h]	9
Optimal Flow [Qopt = m3 / h]	5,99
Temperature range	-20 to + 60 ° C
Max.	61%

* Data are listed for 50 Hz . For different frequencies contact our dealers .

Documents to download

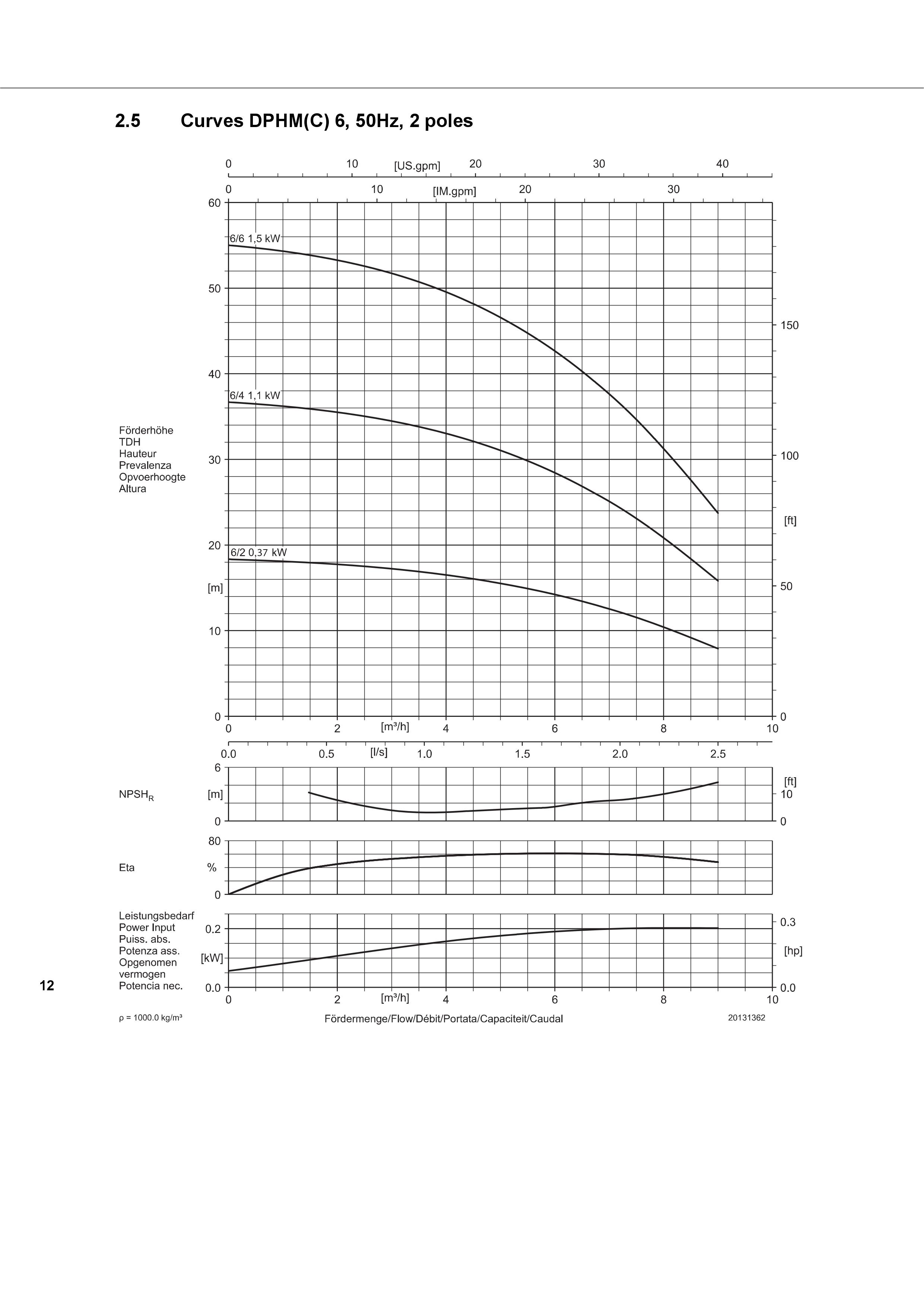

DPHM performance curve 6... (0.05 MB)

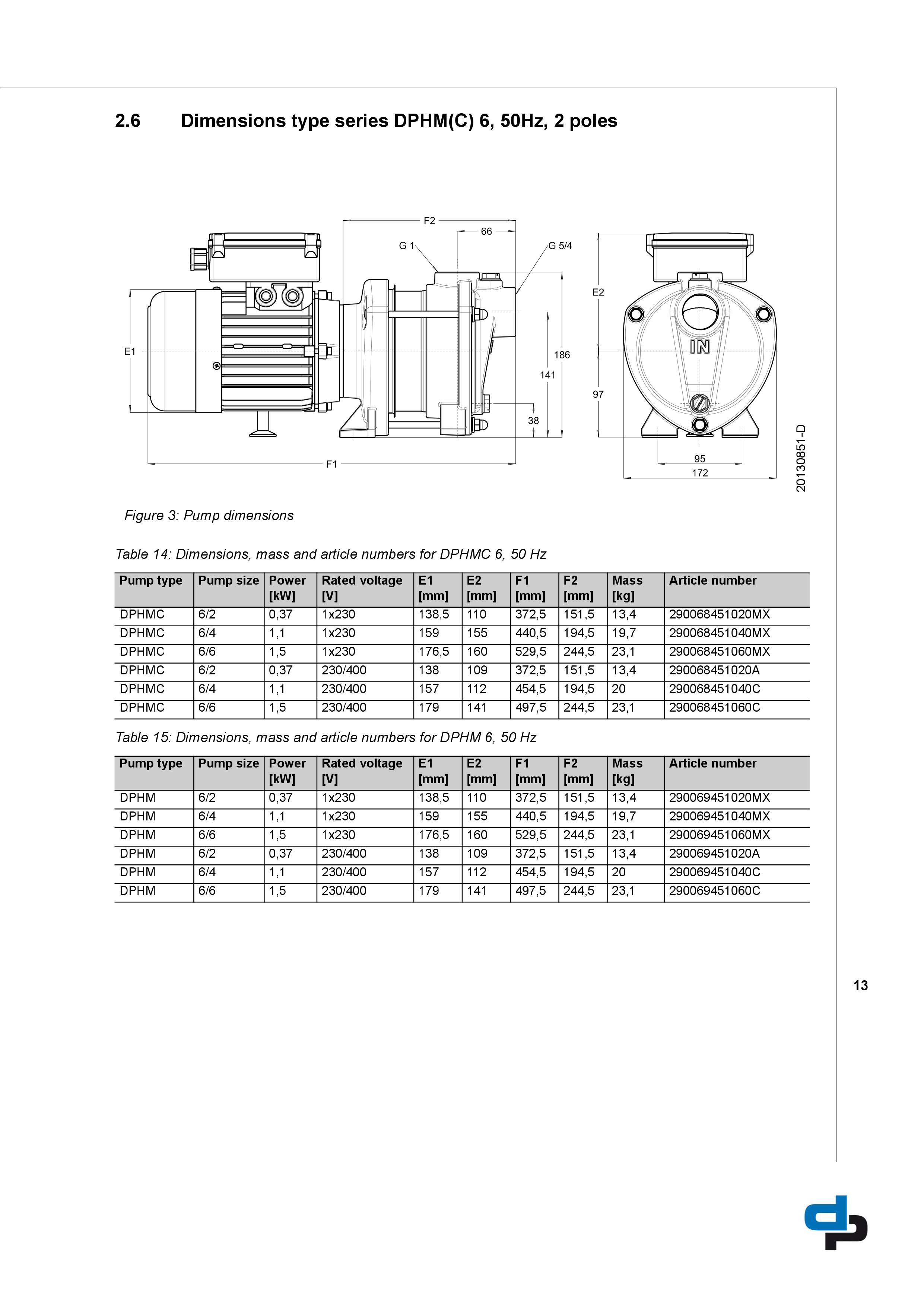

Dimensions of pumps DPHM... (0.1 MB)

Technical data of DPHM (2.05 MB)

DPHM Brochure (EN) (1.05 MB)
