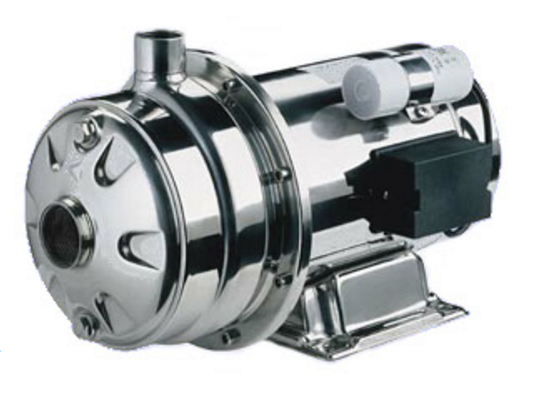

Two-stage centrifugal pumps EBARA 2 CD and 2CDM (single phase) are particularly suitable for industrial and commercial applications , ATS, water treatment plants, domestic waterworks. Two-impeller EBARA pumps are suitable for demanding temperature conditions (-5 to 110 ° C), pressure (8 bar) and operating.
Stainless steel AISI 304 are both wetted parts (pump body, impellers, diffuser, shaft, engine casing and fan cover .
| pump / device type | 2 CD / 2 CDM | |
| Head | up to 75 m | |
| Pressure class | 8 bar | |
| Flow | up to 9 m3 / hour | |
| Power | 0.75 - 1.5 kW | |
| Temperature range | -5 to 110 ° C | |
| Material | stainless steel (AISI 304) |
Model
kW
Q = Traffic (Flow)
Monophase
Three-Phase
l / min 0
20
40
60
80
120
150
180
210
230V 50Hz
230 / 400V 50Hz
m3 / h
1,2
2.4
3,6
4,8
7.2
9
10.8
12.6

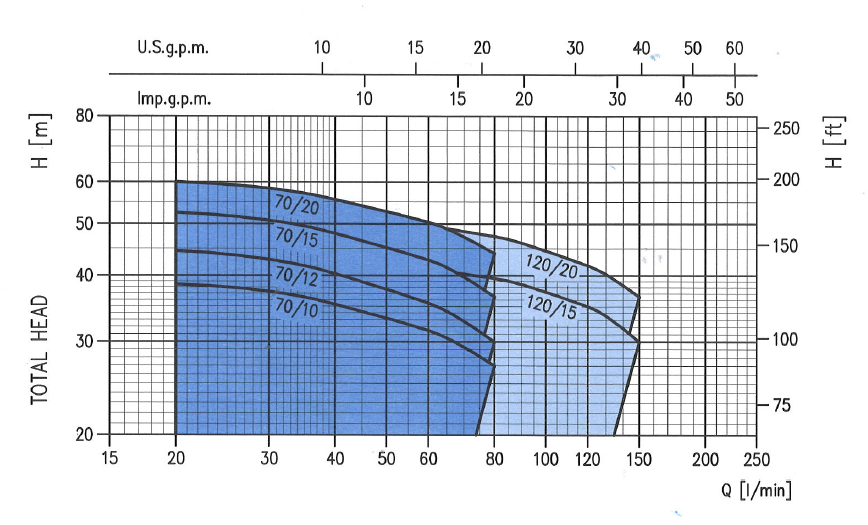

H = Traffic height (m)
2CDM 70/10
2CD 70/10
0.75
41
38.5
35.3
31.5
28
-
-
-
-
2CDM 70/12
2CD 70/12
0.9
48
44.5
40,3
35.5
30
-
-
-
-
2CDM 70/15
2CD 70/15
1.1
56
52,5
48
42,8
36.5
-
-
-
-
2CDM 70/20
2CD 70/20
1.5
64
60
55,6
50.4
44
-
-
-
-
2CDM 120/15
2CD 120/15
1.1
45
-
42
41
39.5
35
30
-
-
2CDM 120/20
2CD 120/20
1.5
55
-
51,5
49.5
47.4
41,8
36.5
-
-
2CD 120/30
2.2
64
-
59
57
54,6
49.2
44
-
-
2CD 120/40
3
71.5
-
68.5
66.5
64
58
52
-
-
2CD 200/30
2.2
55
-
-
52
50.8
48,1
45.5
42,7
39.5
2CD 200/40
3
66
-
-
62.5
61,1
58
55.2
52,3
50
2CD 200/50
3,7
75
-
-
71.5
70,1
67
64,3
61.2
57.5
