EBARA CDX / CDXL

EBARA CDX / CDXL

The AISI 304 (CDX) or AISI 316 (CDXL) single-stage centrifugal EBARA pump is designed for pumping water and slightly aggressive liquids. Unlike the full-range CD series, the aluminum flange and engine casing , the AISI 303 stainless steel shaft.

It is especially used to transport clean water , it is also suitable as a pump in power stations, ATS, filtration and cooling systems, etc.

pump / device type   CDX / CDXL / CDXM (monophase)
Head   up to 40 m
Pressure class   8 bar
Suction ability   7.8 m (NPSH = 1.2 m)
Flow   up to 15 m3 / hour
Power   0.37 - 1.8 kW
Temperature range   to 110 ° C
Material   stainless steel / aluminum
Price (excl. VAT)
from 5.364, -CZK
Cena (včetně DPH)
from 6.491, -CZK

Characteristics

  • AISI 304 (CDX) or AISI 316 (CDXL)
  • single stage pump for high temperatures up to 110 ° C and pressure classes up to 8 bar
  • Drinking water certificates: WRAS (United Kingdom), TIFQ (Italy)
  • Mechanical seals: carbon / ceramics / tungsten / graphite / NBR / FPM / EPDM
  • special packings
  • are available based on needs

Technical parameters

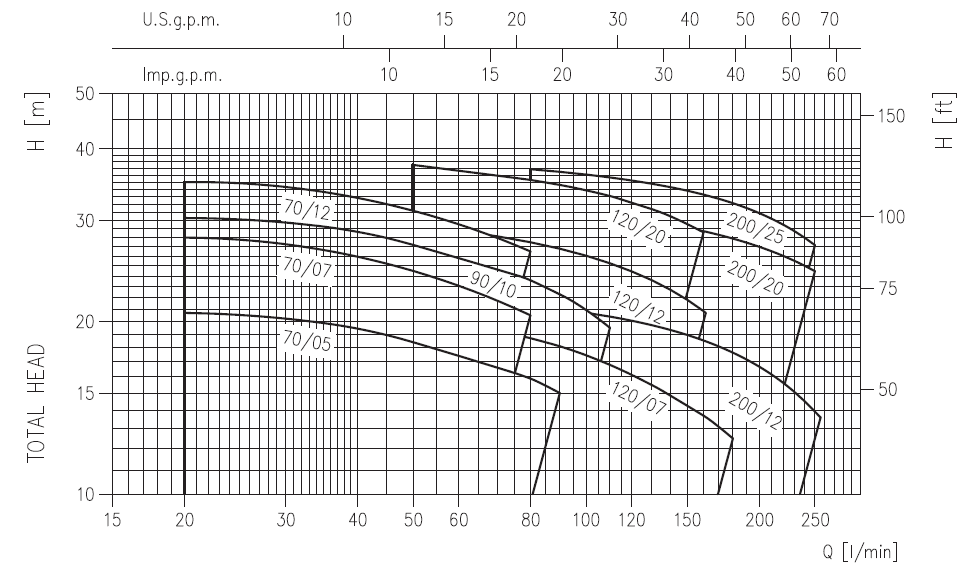

Pump performance curves EBARA CDX

Spreadsheet table

Model

kW

Q = Traffic (Flow)

Monophase

Three-Phase

l / min 0

20

50

80

90

110

130

160

180

210

250

230V 50Hz

230 / 400V 50Hz

m3 / h

1,2

3

4,8

5,4

6.6

7.8

9,6

10.8

12.6

15

H = Traffic height (m)

CDXM 70/05

CDX 70/05

p>

0.37

22

20,7

18.4

15.9

15

-

-

-

-

-

-

CDXM 70/07

CDX 70/07

0.55

30

28

24.5

20.5

-

-

-

-

-

-

-

CDXM 70/12

CDX 70/12

0.9

37

35

31,2

26.5

-

-

-

-

-

-

-

CDXM 90/10

CDX 90/10

0.75

32

30.3

27,2

23,6

22,3

19.5

-

-

-

-

-

CDXM 120/07

CDX 120/07

0.55

22.5

-

20.5

18,7

18.1

16,8

15.5

13,7

12.5

-

-

CDXM 120/12

CDX 120/12

0.9

31,2

-

29.5

27,1

26,1

24.3

22,4

19.5

-

-

-

CDXM 120/20

CDX 120/20

1.5

40.5

-

37.5

35,3

34,6

33,1

31,4

28,6

-

-

-

CDXM 200/12

CDX 200/12

0.9

22.8

-

-

20,6

20,2

19.5

18.5

17,1

16,1

14,6

12.5

CDXM 200/20

CDX 200/20

1.5

32

-

-

32

30.6

29,7

28,9

27.5

26,6

25,1

23



CDX 200/25

1,8

39.4

-

-

38

37.5

36.4

35,3

33,6

32,4

30.5

28

Documents to download

Technical Data of EBARA C... (1.02 MB)
EBARA CDX Performance Pum... (1.36 MB)
