The submersible WQ series drainage pumps are designed for pumping dirty water, sludge, sewage, sewage and draining of water from vaulted cellars, canals, trenches, etc. They will also be used when pumping water from surface and sub- resources such as rivers, ponds, reservoirs and pools.
Drainage pumps unlike slurry pumps are designed for less dirt penetration up to 5 mm , with a larger transport height up to 25 m / p>
| Head | up to 25 m | |
| Flow | up to 40 m3 / hour | |
| Power | 0.25 to 1.1 kW | |
| Temperature range | up to 35 ° C | |
| Material | aluminum / plastic |
|
Type |
Q (m3 / h) |
H (m) |
P (W) |
U (V) |
Pass Through (mm) |
Weight (kg) |
|
WQ 3-13-0,25 |
3 |
13 |
250 |
230 |
5 |
8.5 |
|
WQ 10-10-0, 55 |
10 |
10 |
550 |
230 |
5 |
12 |
|
WQ 6-14-0, 55 |
6 |
14 |
550 |
230 |
5 |
12 |
|
WQ 3-18-0.55 |
3 |
18 |
550 |
230 |
4 |
12 |
|
WQ 3-24-0,75 |
3 |
24 |
750 |
230 |
5 |
14 |
|
WQ 40-6-1,1 |
40 |
6 |
1100 |
400 |
5 |
15 |
|
WQ 6-25-1,1 |
6 |
25 |
1100 |
400 |
5 |
12 |

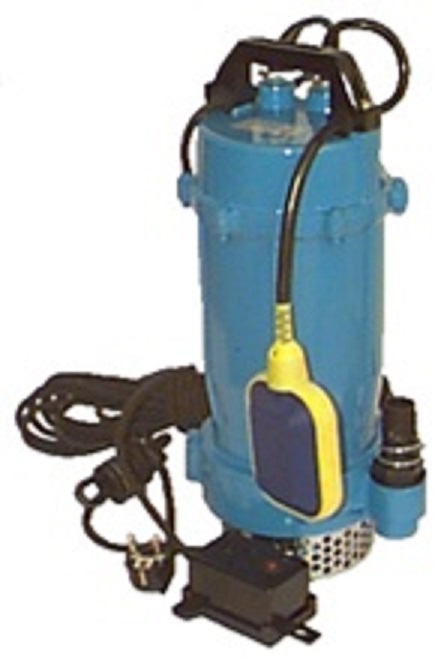

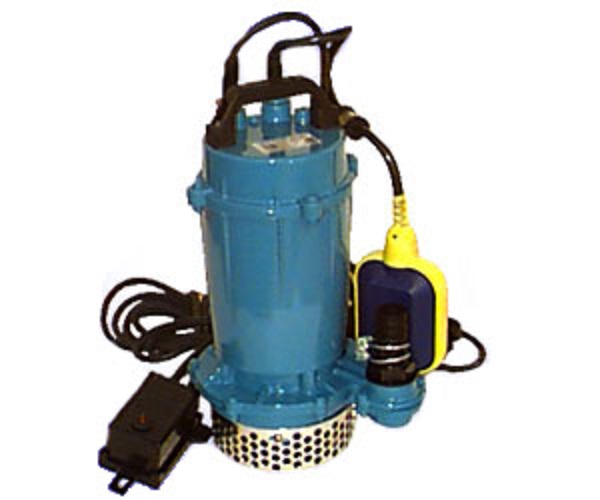

Pump single phase pumps are supplied with built-in heat pump protection, overcurrent protection on cable, float switch and 10 m cable with fork.
Pumps 3-phase are supplied with built-in thermal pump (only 1.1 kW) and 10 m free-end cable.
The engine and pump body are made of aluminum alloy, plastic impeller (WQ 3-13-0,25 - aluminum alloy), the electrical and hydraulic parts are separated by oil chamber with double mechanical seal < / strong>.
