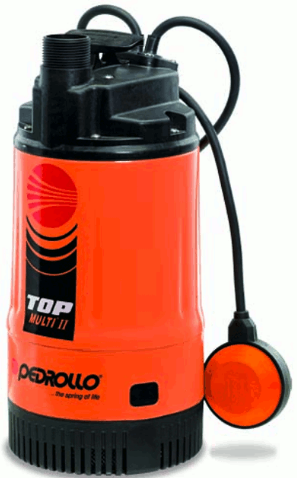

The TOP MULTI pumps are submersible multistage drainage pumps designed to pump clean and slightly soiled water or other non-chemically aggressive materials > technopolymer and stainless steel )

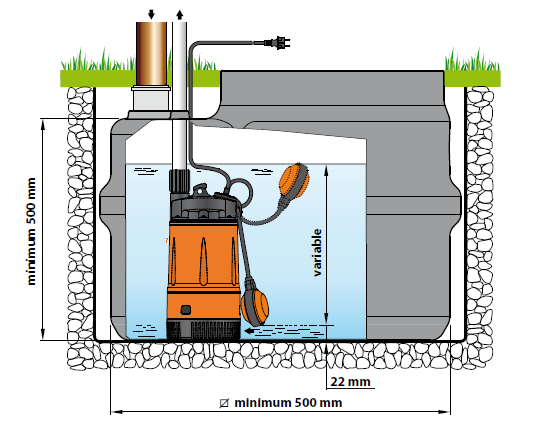

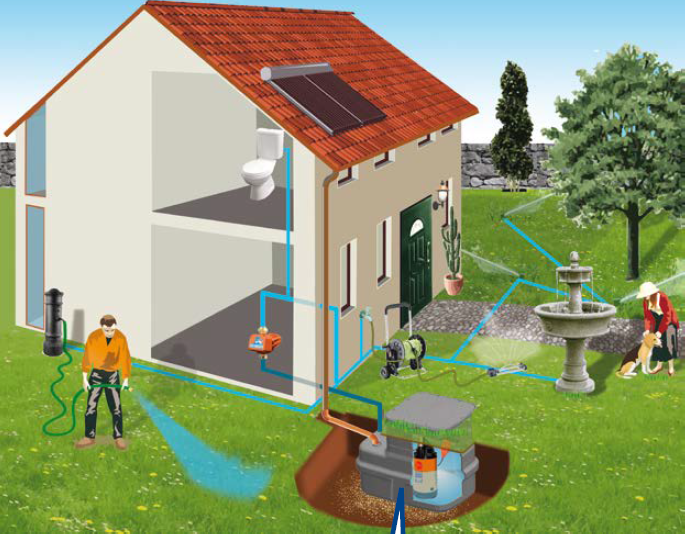

TOP MULTI pumps are especially suited for pumping water in homes and gardens from accumulation tanks , pumping rain water from efficiency and reliability barrels, tanks, tanks and underground tanks, etc. They can also work in natural sources such as filling and discharge pumps for irrigation systems and sanitation.

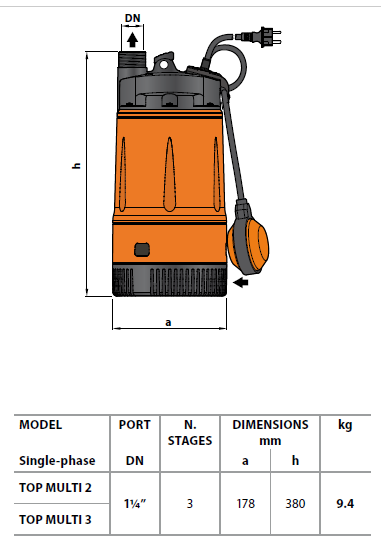

| pump / device type | TOP MULTI 2 / TOP MULTI 3 | |
| Head | up to 42 m | |
| Flow | 7.2 m3 / hr | |
| Power | 0.55 kW | |
| Weight | 9.4 kg | |
| Temperature range | + 40 ° C | |
| Material | technopolymer / stainless steel |
pumps
|
Kind |
Performance |
Traffic volume (flow) |
||||||||||||||
|
M3 / H |
0 |
0.6 |
1,2 |
1,8 |
2.4 |
3.0 |
3,6 |
4.2 |
4,8 |
5,4 |
6.0 |
6.6 |
7.2 |
|||
|
L / MIN |
0 |
10 |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
110 |
120 |
|||
|
kW |
HP |
Traffic height (pressure) |
||||||||||||||
|
Top Multi 2 |
0.55 |
0.75 |
H (m) |
42 |
40 |
38 |
35 |
30 |
24 |
18 |
11.5 |
5 |
|
|
|
|
|
Top Multi |
0.55 |
0.75 |
32 |
32 |
32 |
29.5 |
28 |
25.5 |
23 |
20.5 |
15 |
15 |
12 |
8 |
4 |
|
TOP MULTI are submersible, drainage, multistage pumps with an extended electric motor shaft on which the pump ( monobloc ) is tight. Pump shaft sealing is provided with two mechanical seals (on the side of the engine and the hydraulic part), including oil chamber for long life and maintenance .
The impellers on the shaft rotates inside the blade diffuser, which directs the fluid from one impeller to the suction opening next. The liquid thus passes through the series of impellers into the discharge opening. Each impeller, diffuser and cell body form a single stage that will increase the pressure of the fluid by the same value.
