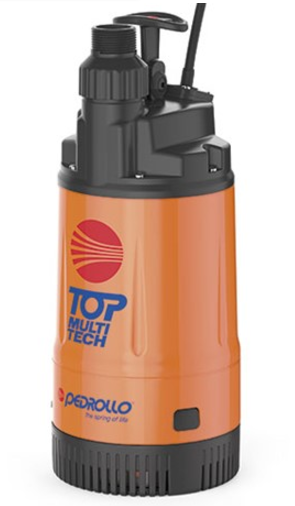

The TOP MULTI-TECH series pumps are the drainage multistage pump system with automatic Start / Stop switch responsive to opening / closing the supply point (valve, cock, spray gun etc.)
Pumps are equipped with a special patented non-return flap . The pump shaft seal is secured by two mechanical oil chamber seals , extending the life of the pump.

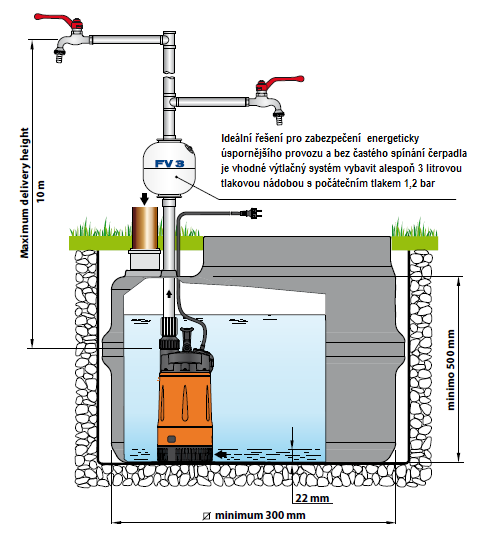

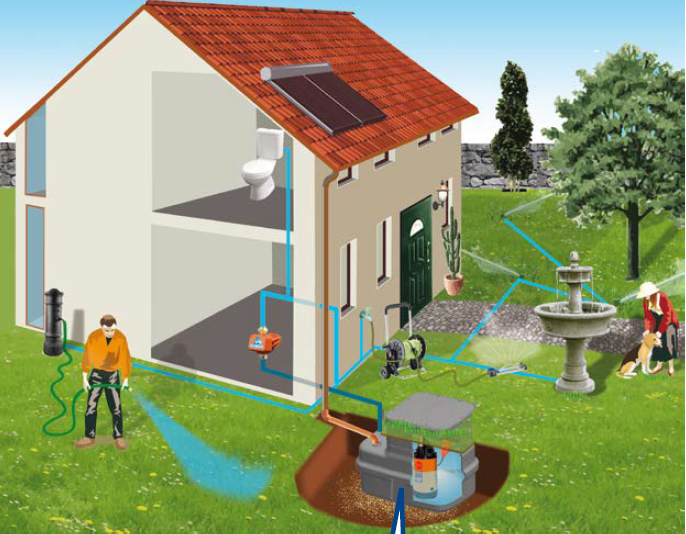

TOP MULTI TECH pumps are ideal for pumping clean, rain and service water from storage tanks , tanks, barrels or underground tanks. Pumps are also used for irrigation, washing and other needs in gardens, homes and in agriculture.

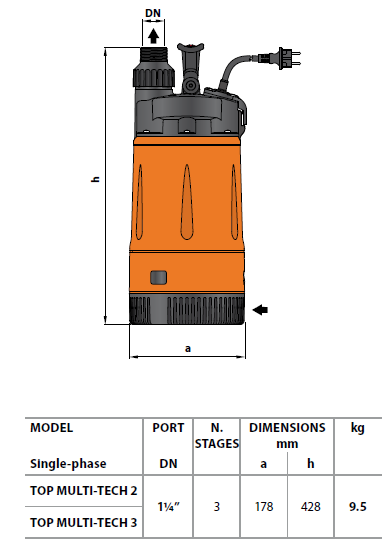

| pump / device type | TOP MULTI TECH 2 / TOP MULTI TECH 3 | |
| Head | up to 42 m | |
| Flow | 7.2 m3 / hr | |
| Power | 0.55 kW | |
| Weight | 9.4 kg | |
| Temperature range | + 40 ° C | |
| Material | technopolymer / stainless steel |
|

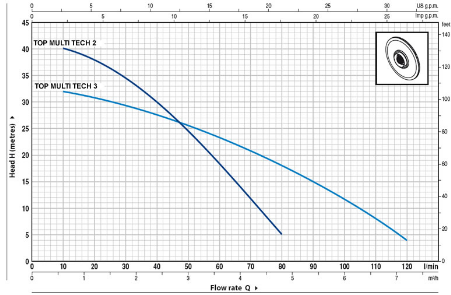

Kind |
Performance |
Q |
Traffic volume (flow) |
||||||||||||||
|
M3 / h |
0 |
0.6 |
1,2 |
1,8 |
2.4 |
3.0 |
3,6 |
4.2 |
4,8 |
5,4 |
6.0 |
6.6 |
7.2 |
||||
|
kW |
HP |
l / min |
0 |
10 |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
110 |
120 |
||
|
Traffic height (pressure) |
|||||||||||||||||
|
TOP MULTI TECH 2 |
0.55 |
0.75 |
H (m) |
42 |
40 |
38 |
35 |
30 |
24 |
18 |
11.5 |
5 |
|
|
|
|
|
|
TOP MULTI TECH 3 |
0.55 |
0.75 |
32 |
32 |
32 |
29.5 |
28 |
25.5 |
23 |
20.5 |
18 |
15 |
12 |
8 |
4 |
||
TOP MULTI TECH are submersible, drainage, multistage pumps with an extended electric motor shaft that the pump ( monoblock ) is tightly holding. Pump shaft sealing is provided with two mechanical seals (on the side of the engine and the hydraulic part), including oil chamber for long life and maintenance .
Unlike Pedrollo, the TOP MULTI series does not have a float switch, but an electronic device with an automatic START / STOP START switch which pumps when the pressure in the displacement system drops below 1.5 bar / 15 m (eg if a valve, cock, spray gun, etc.) is opened. The pump switches off automatically if the subscription is less than 3 liters per minute . This system also protects the pump against drowning and anti-static in cases wherethe pump has not been used for a long time because it will start automatically after 10 seconds after 48 hours of inactivity.
