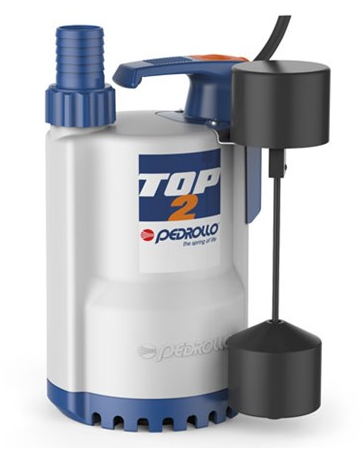

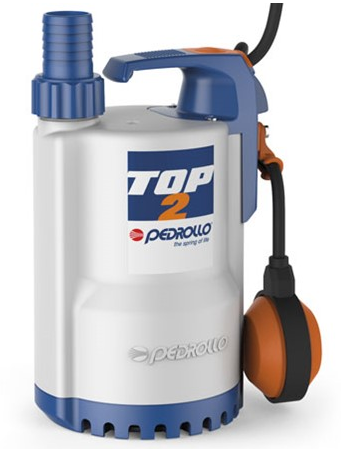

Pumps Pedrollo TOP series are submersible single-stage monoblock pump sets consisting of a hydraulic part and an electric motor. They can be equipped with a standard or magnetic float switch (TOP GM), which ensures automatic pump operation. A major structural advantage of the pump is the double shaft oil chamber with a double mechanical seal that provides long maintenance-free maintenance.
The TOP pumps are most commonly used for pumping clean, utility and slightly polluted water. The ideal solution is to drain tanks, garden barrels, pools, tanks, flooded cellars, and other flooded areas.
| pump / device type | Pedrollo TOP / TOP GM | |
| Head | up to 15.5 m | |
| Flow | up to 21.3 m3 / hour | |
| Power | 0.25 to 0.92 kW | |
| Weight | from 4.1 kg | |
| Temperature range | 40 ° C (short-term up to 90 ° C) | |
| Material | technopolymer / stainless steel AISI 304 (AISI 316 for LA version) |
|
Model Single-phase engine |
Performance |
Traffic volume (flow) |
|||||||||||||||
|
M3 / h |
0 |
1,2 |
2.4 |
3,6 |
4,8 |
6.0 |
7.2 |
8.4 |
9,6 |
10.8 |
12 |
13.2 |
14.4 |
15.6 |
|||
|
kW |
HP |
l / min |
0 |
20 |
40 |
60 |
80 |
100 |
120 |
140 |
160 |
180 |
200 |
220 |
240 |
260 |
|
|
Traffic height (pressure) |
|||||||||||||||||
|
TOP-1 |
0.25 |
0.33 |
H (m) |
7 |
6 |
5.5 |
4.5 |
4 |
3 |
2.5 |
1,8 |
1 |
|
|
|
|
|
|
TOP-2 |
0.37 |
0.50 |
9 |
8 |
7.5 |
6.5 |
6 |
5.5 |
4.5 |
4 |
3 |
2.5 |
1,8 |
1 |
|
|
|
|
TOP-3 |
0.55 |
0.75 |
10.5 |
10 |
9 |
8,8 |
8 |
7.5 |
6.5 |
6 |
5.5 |
4,8 |
4 |
3.5 |
2.5 |
2 |
|
|
TOP 4 N |
0.75 |
1 |
13 |
12.5 |
12,1 |
11.6 |
11.3 |
10.8 |
10.3 |
9.8 |
9.2 |
8.5 |
7.9 |
7.1 |
6,4 |
5.5 |
|
|
TOP 5 N |
0.92 |
1.25 |
15.5 |
15 |
14.5 |
14.1 |
13.6 |
13.2 |
12.6 |
12 |
11.5 |
10.8 |
10 |
9.4 |
8.5 |
7.8 |
|
