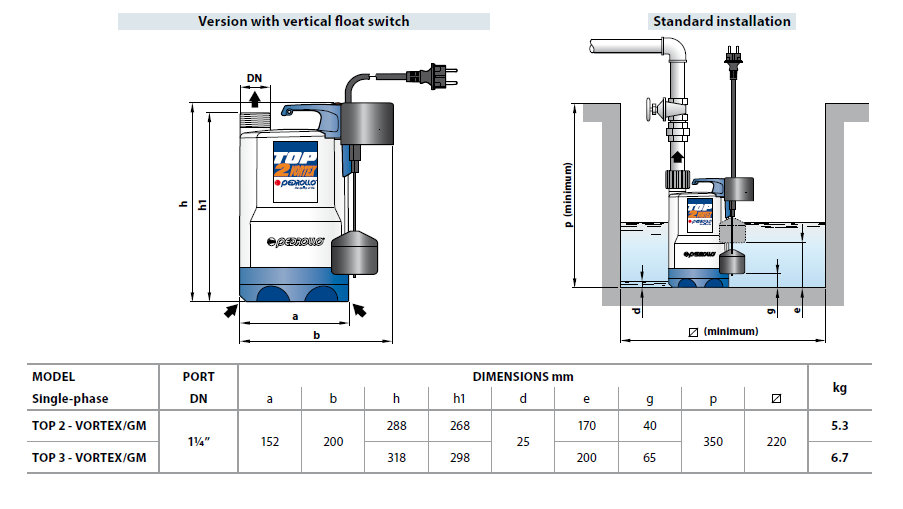

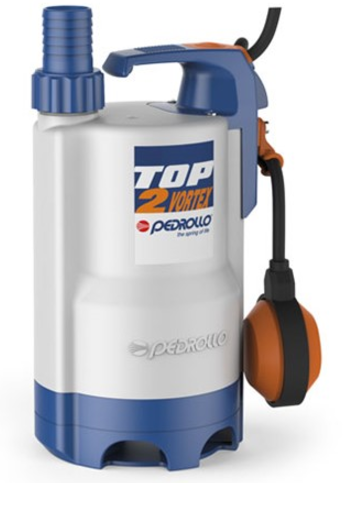

The TOP VORTEX Series Pedrolls are reliable one-stage sewage pumps designed to pump dirty and mechanically contaminated water up to 20 mm. They can be equipped with a standard or magnetic float switch (TOP VORTEX / GM), which ensures automatic pump operation. A major structural advantage of the pump is the oil chamber with double mechanical seal shaft, which guarantees long service life.
The most common use of TOP VORTEX pumps is pumping dirty, utility and mechanically polluted water, other liquids that are not chemically aggressive to the material-made pump (technopolymer / stainless steel). Use of the pump is when cleaning pools, draining tanks, barrels, tanks, tanks and other flooded areas.
| pump / device type | TOP VORTEX / TOP VORTEX - GM | |
| Head | up to 8.5 m | |
| Flow | up to 10.8 m3 / hour | |
| Power | 0.37 to 55 kW | |
| Temperature range | up to + 40 ° C (short-term up to + 90 ° C) | |
| Material | technopolymer / stainless steel |
Model
Single-phase engine

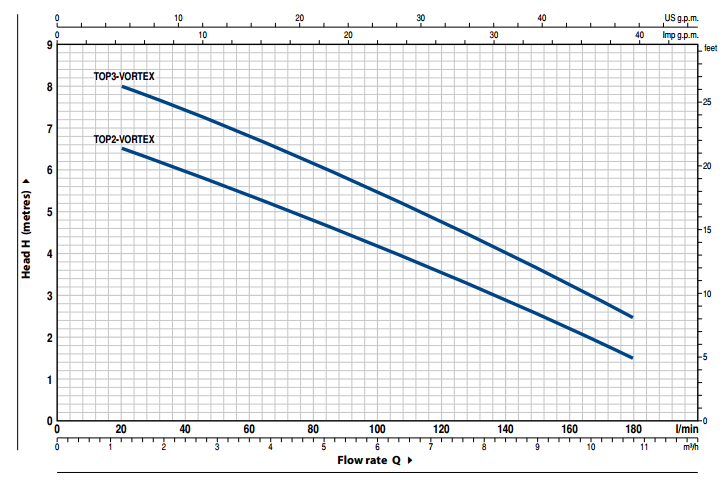

Performance
Traffic volume (flow)
M3 / h
0
1,2
2.4
3,6
4,8
6.0
7.2
8.4
9,6
10.8
kW
HP
l / min
0
20
40
60
80
100
120
140
160
180
Traffic height (pressure)
TOP-2 VORTEX
0.37
0.50
H (m)
7
6.5
6
5,4
4,8
4.2
3.5
2.9
2.2
1.1
TOP-3 VORTEX
0.55
0.75
8.5
8
7.4
6.8
6.1
5.5
4,7
4
3.2
2.5
